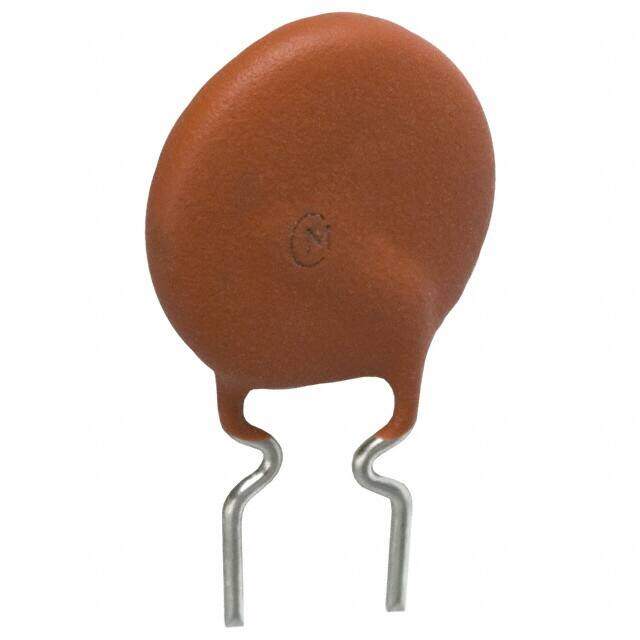

PTGL12AS2R2K4B51B0
RoHS
RoHS compliant
RoHS compliantPackage Radial, Disc
Category Circuit Protection / PTC Resettable Fuses
Description
PTC RESET FUSE 60V 556MA RADIAL
PDF
/
Buying Options
Total Price: USD $0.9
Unit Price: USD $0.903275
≥1 USD $0.903275
≥300 USD $0.349231
≥600 USD $0.337415
≥900 USD $0.330851
Inventory: 4697
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Exempt
RoHS Status ROHS3 Compliant
Dimensions
Thickness 3.5mm
Height Seated (Max) 0.650 16.50mm
Height 16.5mm
Diameter 11.5mm
Technical
Resistance @ 25°C 2.2Ohm
Trip Current 867mA
Current - Trip (It) 739mA
Thermistor Application OVERLOAD PROTECTION
Current - Hold (Ih) (Max) 556mA
Hold Current 439mA
Max Current Rating 5A
Voltage 60V
Lead Spacing 0.197 5.00mm
Lead Pitch 5mm
Approval Agency UL
Current Rating 5A
Depth 3.5mm
Subcategory Non-linear Resistors
HTS Code 8533.40.80.70
Terminal Finish Tin/Copper (Sn/Cu)
Resistance 2.2Ohm
Type Ceramic
ECCN Code EAR99
Termination Radial
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e2
Tolerance 10%
Size / Dimension 0.453Dia x 0.138 T 11.50mmx3.50mm
Series POSISTOR?, PTGL
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Terminal Shape WIRE
Package / Case Radial, Disc
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 10 Weeks
