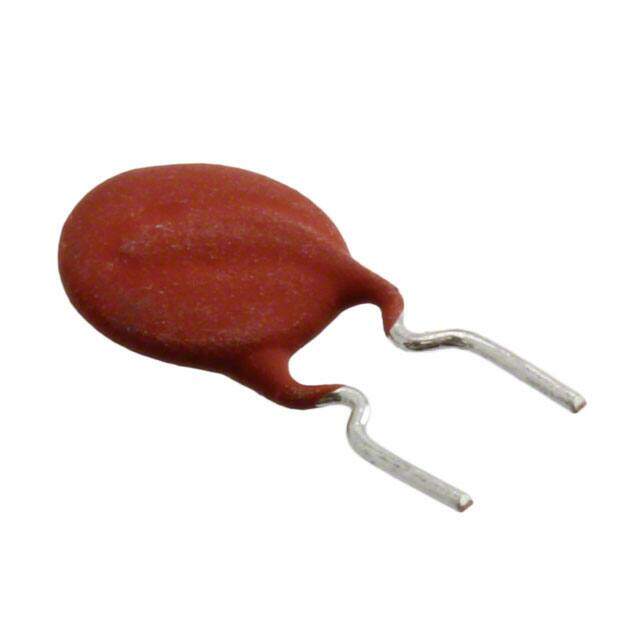

PTGL05AR550H4P51B0 image
Favorite
PTGL05AR550H4P51B0 image
Favorite

PTGL05AR550H4P51B0

Murata Electronics
RoHS
RoHS RoHS compliant
Package Radial, Disc
Category Circuit Protection / PTC Resettable Fuses
Description Thermistor PTC 55 Ohm 25% 2-Pin Radial Bulk
PDF
/
Buying Options
Total Price: USD $0.6
Unit Price: USD $0.59737
≥1 USD $0.59737
≥200 USD $0.232383
≥500 USD $0.223193
≥1000 USD $0.219254
Inventory: 967
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Height Seated (Max) 0.453 11.50mm

Technical

Resistance @ 25°C 55Ohm
Trip Current 115mA
Voltage - Max 80V
Thermistor Application OVERLOAD PROTECTION
Hold Current 62mA
Current - Max 700mA
Max Current Rating 700mA
Voltage 80V
Lead Spacing 0.197 5.00mm
Current Rating 700μA
Depth 4.5mm
Max Power Dissipation 1.2W
HTS Code 8533.40.80.70
Additional Feature PTC TRIP CURRENT AT -10 DEGREE IS 0.135
Terminal Finish Tin/Copper (Sn/Cu)
Resistance 55Ohm
Type Ceramic
ECCN Code EAR99
Termination Radial
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e2
Tolerance 25%
Size / Dimension 0.217Dia x 0.177 T 5.50mmx4.50mm
Series POSISTOR?, PTGL
Packaging Bulk
Operating Temperature -10°C~60°C

Physical

Weight 369.989626mg
Number of Pins 2
Terminal Shape WIRE
Package / Case Radial, Disc
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 10 Weeks
