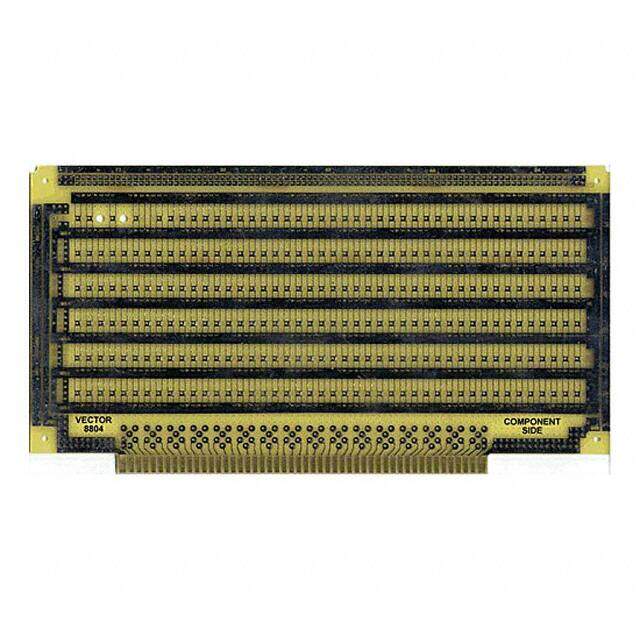

8804
RoHS
/
Package 100
Category Prototyping, Fabrication Products / Prototype Boards Perforated
Description
PC BOARD VOLTAGE/GRDPLN 10.0X5.3
PDF
/
Buying Options
Total Price: USD $51.31
Unit Price: USD $51.3128
≥1 USD $51.3128
≥10 USD $48.38064
≥100 USD $46.91456
≥500 USD $42.51632
≥1000 USD $41.050064
≥3000 USD $39.584072
Inventory: 47
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 2 Weeks
Physical
Mount Edge
Package / Case 100
Material Glass
Technical
Series Vectorbord? Plugbord?
Size / Dimension 10.50Lx5.30W 266.7mmx134.6mm
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Additional Feature 471.8592 FREQUENCY ALSO AVAILABLE; TR
Pitch 0.100 2.54mm
Supply Voltage 3.3V
Reach Compliance Code compliant
Frequency Stability 30%
Operating Temperature (Max) 85°C
Physical Dimension 19.9mm x 13.0mm x 5.9mm
Operating Temperature (Min) -40°C
Operating Frequency 122.88MHz
Rise Time-Max 1ns
Fall Time-Max 1ns
Symmetry-Max 55/45%
Supply Voltage-Max (Vsup) 3.465V
Supply Voltage-Min (Vsup) 3.135V
Plating Non-Plated Through Hole (NPTH)
Oscillator Type PECL
Output Load 50 OHM
Frequency Adjustment-Mechanical NO
Hole Diameter 0.042 (1.07mm)
Linearity 10%
Control Voltage-Max 3.3V
Frequency Deviation/Pullability 200 ppm
Proto Board Type Plugboard, Card Edge
Circuit Pattern Pad Per Hole (Round), Ground Plane
Edge Contacts 100 @ 0.125 (3.18mm)
Dimensions
Height 1.57mm
Thickness 1.57mm
Board Thickness 0.062 1.57mm 1/16
Compliance
RoHS Status Non-RoHS Compliant
