RoHS
/
Package Epoxy
Category Prototyping, Fabrication Products / Prototype Boards Perforated

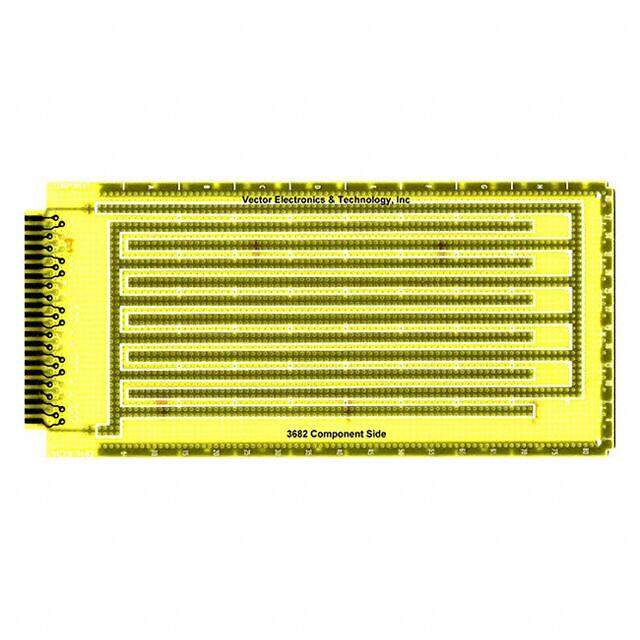

Description PC BOARD INTERLVD BUSES 4.5X9.6
PDF
/
Inventory: 1571
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status Non-RoHS Compliant

Dimensions

Board Thickness 0.062 1.57mm 1/16
Thickness 1.57mm
Width 114.3mm
Length 165.1mm
Height 1.57mm

Technical

Edge Contacts 44 @ 0.156 (3.96mm)
Circuit Pattern Common Bus
Proto Board Type Plugboard, Card Edge
Hole Diameter 0.042 (1.07mm)
Evaluation Kit Yes
Plating Plated Through Hole (PTH)
Number of Contacts 44
Pitch 0.100 2.54mm
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 6.50Lx4.50W 165.1mmx114.3mm
Series Vectorbord? Plugbord?

Physical

Material Glass
Package / Case Epoxy
Mount External

Supply Chain

Factory Lead Time 2 Weeks
