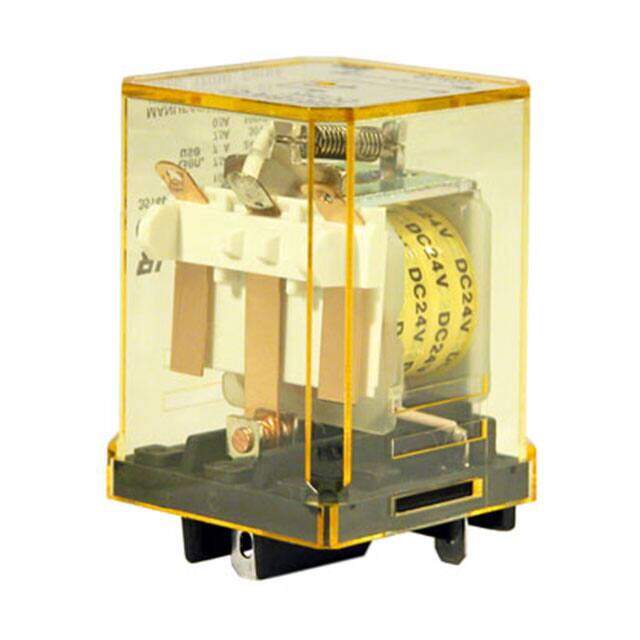

RR1BA-UAC120V
RoHS
RoHS compliant
RoHS compliantPackage /
Category Relays / Power Relays, Over 2 Amps
Description
Active ROHS3Compliant SPDT (1Form C) General Purpose Power Relay 25ms -25C~40C 2.1kOhm 20.5mA
PDF
/
Buying Options
Total Price: USD $13.48
Unit Price: USD $13.4816
≥1 USD $13.4816
≥10 USD $11.9812
≥100 USD $11.38192
≥500 USD $10.782992
≥1000 USD $10.183888
≥3000 USD $9.285302
Inventory: 95
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Coil Voltage (AC) 120V
Must Release Voltage 36VAC
Must Operate Voltage 96VAC
Coil Current 20.5mA
Switching Voltage 240VAC 30VDC -Max
Coil Type Non Latching
Coil Voltage 120VAC
Operate Time 25ms
Coil Resistance 2.1kOhm
Relay Type General Purpose
Contact Form SPDT (1 Form C)
Max Voltage Rating (DC) 30V
Throw Configuration SPDT
Max Current Rating 10A
Max Voltage Rating (AC) 120V
Termination Style Plug In, Quick Connect - 0.187 (4.7mm)
Current Rating 10A
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series RR
Published 2007
Packaging Bulk
Operating Temperature -25°C~40°C
Physical
Number of Pins 5
Mounting Type Socketable
Mount Socket
Contact Material Silver (Ag)
Supply Chain
Factory Lead Time 8 Weeks
