4-6609987-2
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Connectors, Interconnects / Power Entry Connectors - Inlets, Outlets, Modules
Description

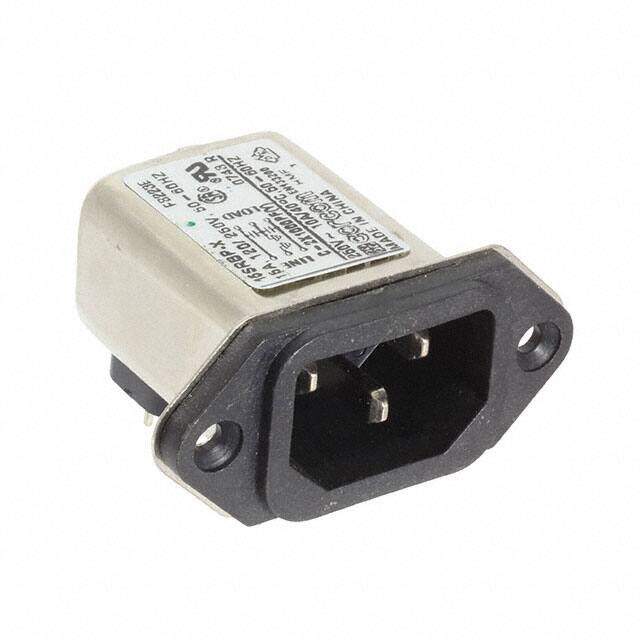

PWR ENT RCPT IEC320-C14 PNL SLDR
PDF
/
Buying Options
Total Price: USD $3.68
Unit Price: USD $3.682288
≥1 USD $3.682288
≥10 USD $3.473858
≥100 USD $3.277228
≥500 USD $3.09172
≥1000 USD $2.916714
Inventory: 1103
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Technical
Accomodates a Fuse No
Current - IEC 15A
Filter Type Filtered (EMI, RFI) - Commercial
Voltage - IEC 120/250VAC
Current - UL 10A
Voltage - UL 250VAC
Current 15A
Connector Style IEC 320-C14
Max Voltage Rating (AC) 250V
Leakage Current 70μA
ELV Compliant
Panel Cutout Dimensions Rectangular - 30.48mm x 22.86mm
Number of Contacts 3
Approval Agency CSA, UL, VDE
Current Rating 15A
Min Operating Temperature -10°C
Max Operating Temperature 40°C
Number of Positions 3
Connector Type Receptacle, Male Blades
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Shielded
Series SRB, Corcom
Published 2008
Packaging Bulk
Physical
Package / Case Module
Mounting Type Panel Mount, Flange; Through Hole, Right Angle
Mount Panel, Screw, Through Hole
Supply Chain
Factory Lead Time 20 Weeks
