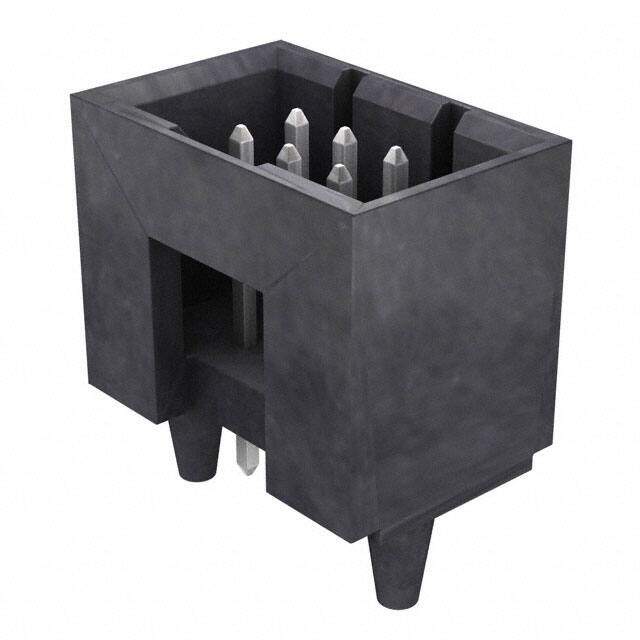

0015477506
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings CGrid VT Shrd Hdr w/Pg TIN 6ckt
PDF
/
Inventory: 6104
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Material Brass
Housing Material Polymer
Technical
Packaging Tube
Series C-Grid 70568
Feature Board Guide
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Max Operating Temperature 105°C
Min Operating Temperature -55°C
Applications Automotive, General Purpose, Lighting, Medical, Telecommunications
Number of Rows 2
Additional Feature POLARIZED, SHROUDED
Fastening Type Latch Holder
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Orientation Vertical, Right Angle
Insulation Height 0.475 12.07mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 2A
Pitch - Mating 0.100 2.54mm
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.130 3.30mm
Shrouding Shrouded - 4 Wall
Number of Contacts 6
Contact Length - Mating 0.315 8.00mm
UL Flammability Code 94V-0
Housing Color Black
Overall Contact Length 0.570 14.48mm
Dimensions
Length 14.74mm
Contact Finish Thickness - Mating 150.0μin 3.81μm
Contact Finish Thickness - Post 150.0μin 3.81μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
