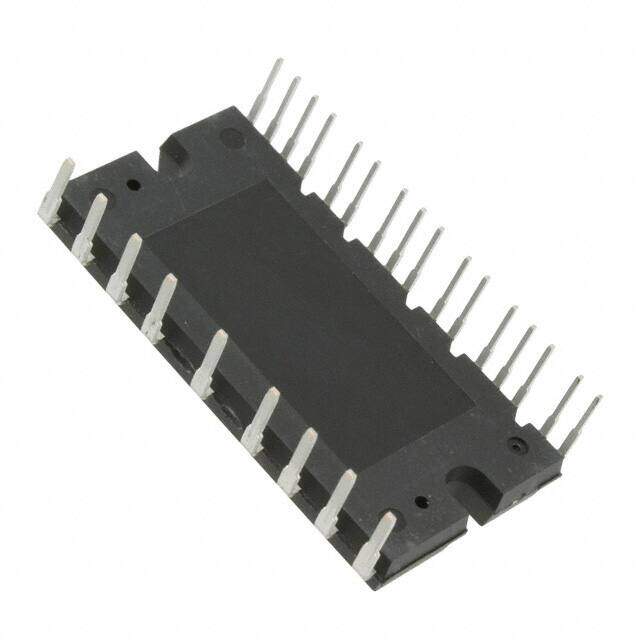

STGIPS14K60
RoHS
RoHS compliant
RoHS compliantPackage 25-PowerDIP Module (0.993, 25.23mm)
Category Discrete Semiconductor Products / Power Driver Modules
Description
IGBT IPM MODULE 12A 600V 25SDIP
PDF
/
Buying Options
Total Price: USD $26.27
Unit Price: USD $26.2675
≥1 USD $26.2675
≥10 USD $21.55265
≥100 USD $20.8791
≥500 USD $20.20555
≥1000 USD $19.532
Inventory: 24
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 25-PowerDIP Module (0.993, 25.23mm)
Number of Pins 25
Technical
Series SLLIMM?
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 25
ECCN Code EAR99
Type IGBT
Max Operating Temperature 150°C
Min Operating Temperature -40°C
HTS Code 8542.39.00.01
Subcategory Motion Control Electronics
Max Power Dissipation 42W
Terminal Position DUAL
Number of Functions 1
Supply Voltage 15V
Base Part Number STGIPS14
Pin Count 25
Voltage - Isolation 2500VDC
Supply Voltage-Max (Vsup) 18V
Power Supplies 15V
Temperature Grade AUTOMOTIVE
Supply Voltage-Min (Vsup) 13.5V
Configuration 3 Phase
Element Configuration Single
Current 12A
Turn On Delay Time 270 ns
Turn-Off Delay Time 320 ns
Collector Emitter Voltage (VCEO) 600V
Max Collector Current 14A
Dimensions
Height 7.5mm
Length 44.9mm
Width 22.5mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
