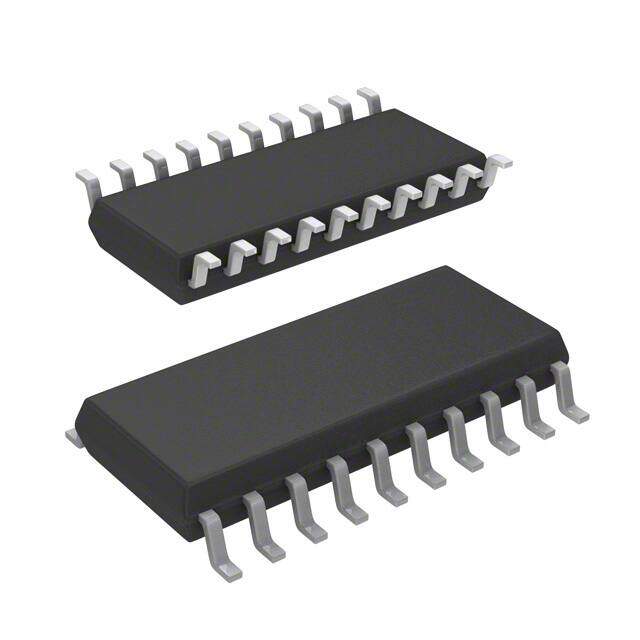

L4949EPTR-E
RoHS
RoHS compliant
RoHS compliantPackage 20-SOIC (0.295, 7.50mm Width)
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
L4949 Tape & Reel (TR) Surface Mount Over Temperature Short Circuit voltage regulator linear 300mV 2.65mm 100mA -40C~125C
PDF
/
Buying Options
Total Price: USD $1.91
Unit Price: USD $1.9096
≥1 USD $1.9096
≥10 USD $1.71336
≥100 USD $1.616032
≥500 USD $1.376848
≥1000 USD $1.292861
≥3000 USD $1.13124
Inventory: 1211
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status ACTIVE (Last Updated: 7 months ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 20-SOIC (0.295, 7.50mm Width)
Number of Pins 20
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series Automotive, AEC-Q100
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 20
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Subcategory Other Regulators
Packing Method TAPE AND REEL
Technology BIPOLAR
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Base Part Number L4949
Pin Count 20
Current - Supply (Max) 5mA
Number of Outputs 1
Voltage - Input (Max) 28V
Output Voltage 5V
Output Type Fixed
Max Output Current 100mA
Output Configuration Positive
Quiescent Current 300μA
Control Features Reset
Accuracy 1 %
Output Voltage 1 5V
Number of Regulators 1
Min Input Voltage 6V
Protection Features Over Temperature, Short Circuit
Voltage Dropout (Max) 0.5V @ 100mA
Dropout Voltage 300mV
Dropout Voltage1-Nom 0.3V
Min Output Voltage 4.95V
Voltage Tolerance-Max 2%
Min Current Limit 120mA
Output Voltage Accuracy 1 %
Dimensions
Height Seated (Max) 2.65mm
Width 7.5mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Alternative Model
