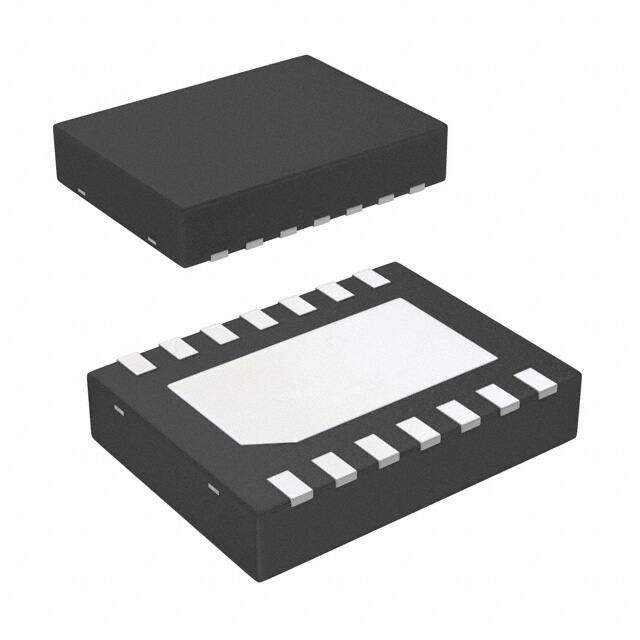

DS64EV100SDX/NOPB
RoHS
RoHS compliant
RoHS compliantPackage 14-WFDFN Exposed Pad
Category Integrated Circuits (ICs) / Interface - Specialized
Description
IC INTERFACE SPECIALIZED 14WSON
PDF
/
Inventory: 1814
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 3mm
Length 4mm
Height Seated (Max) 0.8mm
Technical
Number of Receivers 1
Telecom IC Type LINE EQUALIZER
Power Consumption 100W
Data Rate 10 Gbps
Nominal Supply Current 60mA
Interface Coax Cable and Female Connector
Temperature Grade INDUSTRIAL
Operating Supply Voltage 3.3V
Base Part Number DS64EV100
Terminal Pitch 0.5mm
Supply Voltage 2.5V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position DUAL
Voltage - Supply 2.5V 3.3V
Subcategory Other Telecom ICs
Applications Displays
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Matte Tin (Sn)
Number of Terminations 14
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
JESD-609 Code e3
Packaging Tape & Reel (TR)
Physical
Number of Pins 14
Package / Case 14-WFDFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
