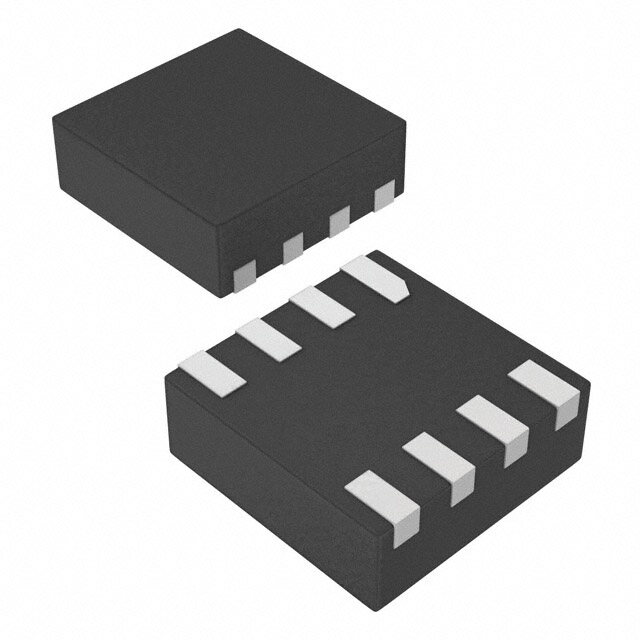

TPS62821DLCR
RoHS
RoHS compliant
RoHS compliantPackage 8-VFDFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
PS62821 Tape & Reel (TR) Nickel/Palladium/Gold (Ni/Pd/Au) Active DC to DC switching regulator 5V 2mm 1A 2.2MHz
PDF
/
Buying Options
Total Price: USD $0.88
Unit Price: USD $0.88
≥1 USD $0.88
≥10 USD $0.78672
≥100 USD $0.746592
≥500 USD $0.613272
≥1000 USD $0.573267
≥3000 USD $0.506616
Inventory: 6214
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mounting Type Surface Mount
Package / Case 8-VFDFN
Surface Mount YES
Technical
Operating Temperature -40°C~125°C TJ
Packaging Tape & Reel (TR)
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Position DUAL
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) 260
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number PS62821
JESD-30 Code R-PDSO-N8
Function Step-Down
Number of Outputs 1
Voltage - Input (Max) 5.5V
Output Type Adjustable
Voltage - Input (Min) 2.4V
Input Voltage-Nom 5V
Analog IC - Other Type SWITCHING REGULATOR
Output Configuration Positive
Current - Output 1A
Voltage - Output (Min/Fixed) 0.6V
Topology Buck
Frequency - Switching 2.2MHz
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier Yes
Voltage - Output (Max) 4V
Dimensions
Length 2mm
Compliance
RoHS Status ROHS3 Compliant
