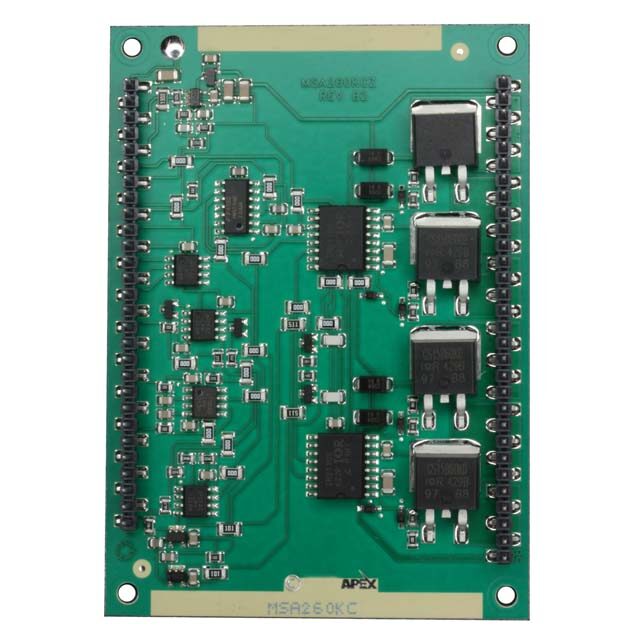

MSA260KC image
Favorite
MSA260KC image
Favorite

MSA260KC

Cirrus Logic
RoHS
/
Package DIP
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description PWM Amplifier 58-Pin DIP
PDF
/
Inventory: 9978
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Technical

Current - Output 20A
Analog IC - Other Type ANALOG CIRCUIT
Supply Voltage-Min (Vsup) 14V
Temperature Grade INDUSTRIAL
Supply Voltage-Max (Vsup) 16V
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Qualification Status Not Qualified
Pin Count 58
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage 15V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position DUAL
HTS Code 8542.39.00.01
Additional Feature ALSO REQUIRES 5V TO 540V SUPPLY
Terminal Finish TIN LEAD
Termination PC Pin
Number of Terminations 58
JESD-609 Code e0
Published 2008

Physical

Number of Pins 58
Package / Case DIP
Mount Through Hole
