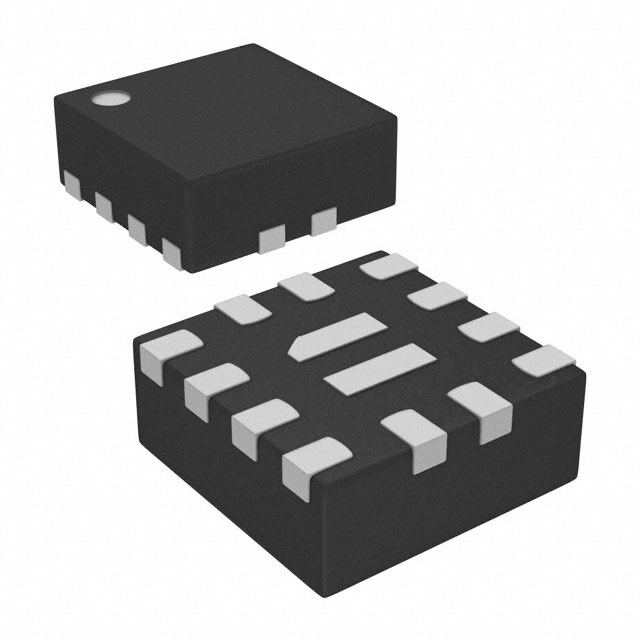

MP3422GG-P
RoHS
RoHS compliant
RoHS compliantPackage 14-PowerVFQFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
Cut Tape (CT) Active Step-Up 2014 DC to DC switching regulator 5.5V 32.205058mg 6.5A Switch 600kHz
PDF
/
Buying Options
Total Price: USD $1.16
Unit Price: USD $1.16185
≥1 USD $1.16185
≥10 USD $0.95285
≥100 USD $0.9234
≥500 USD $0.89395
≥1000 USD $0.86355
Inventory: 8662
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 14-PowerVFQFN
Number of Pins 14
Supplier Device Package 14-QFN (2x2)
Weight 32.205058mg
Technical
Operating Temperature -40°C~125°C TJ
Packaging Cut Tape (CT)
Published 2014
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Function Step-Up
Number of Outputs 1
Voltage - Input (Max) 5.5V
Output Voltage 5.5V
Output Type Adjustable
Max Output Current 6.5A
Operating Supply Voltage 5.5V
Voltage - Input (Min) 1.9V
Min Supply Voltage 1.9V
Operating Supply Current 43μA
Output Configuration Positive
Current - Output 6.5A Switch
Max Output Voltage 5.5V
Voltage - Output (Min/Fixed) 2.5V
Topology Boost
Min Input Voltage 1.9V
Frequency - Switching 600kHz
Max Input Voltage 5.5V
Synchronous Rectifier Yes
Min Output Voltage 2.5V
Voltage - Output (Max) 5.5V
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
