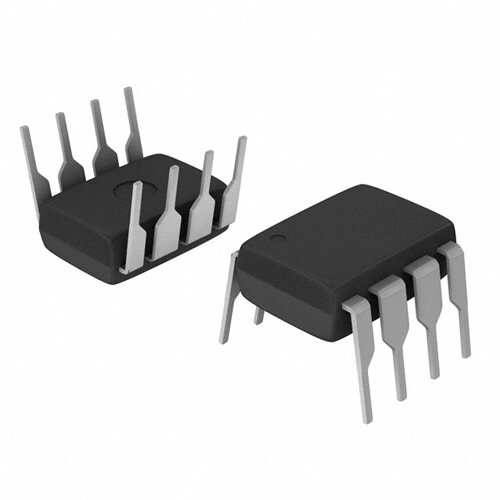

TLC2202IPE4
RoHS
/
Package PDIP
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
RoHS Compliant EAR99 Nickel/Palladium/Gold (Ni/Pd/Au) Rail/Tube op amp amplifier circuit 9.81mm 0.00015muA 1mV 1900kHz
PDF
/
Buying Options
Total Price: USD $8.13
Unit Price: USD $8.132
≥1 USD $8.132
≥10 USD $6.6728
≥100 USD $6.4638
≥500 USD $6.25575
≥1000 USD $6.04675
Inventory: 1120
Minimum: 1
-
+
Technical Details
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Physical
Package / Case PDIP
Surface Mount NO
Number of Pins 8
Technical
Packaging Rail/Tube
JESD-609 Code e4
Pbfree Code yes
Moisture Sensitivity Level (MSL) 1
Number of Terminations 8
ECCN Code EAR99
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Subcategory Operational Amplifier
Technology CMOS
Terminal Position DUAL
Terminal Form THROUGH-HOLE
Peak Reflow Temperature (Cel) 260
Number of Functions 2
Supply Voltage 5V
Pin Count 8
Operating Supply Voltage 8V
Number of Elements 2
Temperature Grade INDUSTRIAL
Max Supply Voltage 16V
Min Supply Voltage 4.6V
Operating Supply Current 1.8mA
Nominal Supply Current 2.7mA
Power Dissipation 1W
Current - Output 50mA
Slew Rate 2.7 V/μs
Architecture VOLTAGE-FEEDBACK
Amplifier Type OPERATIONAL AMPLIFIER
Common Mode Rejection Ratio 80 dB
Current - Input Bias 60pA
Output Current per Channel 50mA
Input Offset Voltage (Vos) 1mV
Bandwidth 1.9MHz
Gain Bandwidth Product 1.9MHz
Neg Supply Voltage-Nom (Vsup) -5V
Unity Gain BW-Nom 1900 kHz
Voltage Gain 109.97dB
Average Bias Current-Max (IIB) 0.00015μA
Low-Offset YES
Frequency Compensation YES
Max Dual Supply Voltage 8V
Low-Bias YES
Micropower YES
Min Dual Supply Voltage 2.3V
Bias Current-Max (IIB) @25C 0.00006μA
Programmable Power NO
Nominal Gain Bandwidth Product 1.9MHz
Max I/O Voltage 1mV
Input Offset Current-Max (IIO) 0.00006μA
Dimensions
Height 5.08mm
Length 9.81mm
Width 6.35mm
Thickness 3.9mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
Alternative Model
