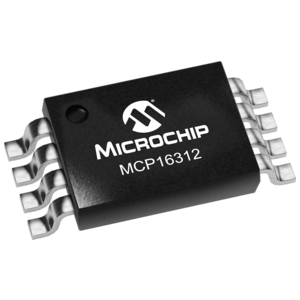

MCP16312-E/MSVAO
RoHS
RoHS compliant
RoHS compliantPackage /
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
MCP16312 ALSO OPERATES IN ADJUSTABLE MODE FROM 2TO 24V; ALSO REQUIRE PFM CONTROL TECHNIQUE Tube Active DC to DC switching regulator 30V 2mm 575kHz 125C
PDF
/
Buying Options
Total Price: USD $24.11
Unit Price: USD $24.110602
≥1 USD $24.110602
≥10 USD $22.745853
≥100 USD $21.458354
≥500 USD $20.243731
≥1000 USD $19.097859
Inventory: 1480
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 2mm
Length 3mm
Height Seated (Max) 0.8mm
Technical
Screening Level AEC-Q100; TS 16949
Switching Frequency-Max 575kHz
Switcher Configuration BUCK
Control Technique PULSE WIDTH MODULATION
Input Voltage (Max) 30V
Control Mode CURRENT-MODE
Input Voltage (Min) 4.4V
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 7V
Output Voltage 5V
Operating Temperature (Min) -40°C
Operating Temperature (Max) 125°C
JESD-30 Code R-PDSO-N8
Base Part Number MCP16312
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.5mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
Terminal Position DUAL
Additional Feature ALSO OPERATES IN ADJUSTABLE MODE FROM 2 TO 24V; ALSO REQUIRE PFM CONTROL TECHNIQUE
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Automotive, AEC-Q100
Packaging Tube
Physical
Surface Mount YES
