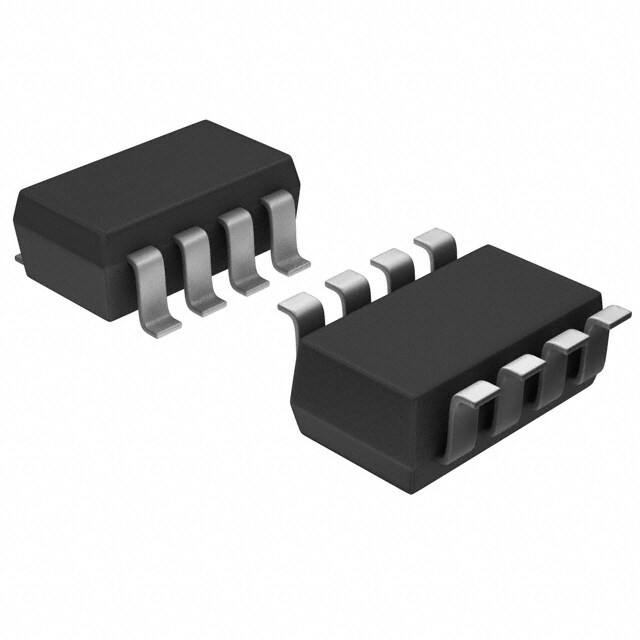

MAX6729KASDD3+T
RoHS
/
Package SOT-23-8
Category Integrated Circuits (ICs) / PMIC - Supervisors
Description
RoHS Compliant Tape & Reel (TR) Multi-Voltage Supervisor NICKEL PALLADIUM GOLD supervisor 5.5V 2.9mm 140ms 714mW
PDF
/
Buying Options
Total Price: USD $2.71
Unit Price: USD $2.705795
≥1 USD $2.705795
≥10 USD $2.552637
≥100 USD $2.408154
≥500 USD $2.271839
≥1000 USD $2.143246
Inventory: 973
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case SOT-23-8
Number of Pins 8
Technical
Packaging Tape & Reel (TR)
Published 2006
JESD-609 Code e4
Pbfree Code yes
Moisture Sensitivity Level (MSL) 1
Number of Terminations 8
ECCN Code EAR99
Type Multi-Voltage Supervisor
Terminal Finish NICKEL PALLADIUM GOLD
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Subcategory Power Management Circuits
Technology BICMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 0.65mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 8
Qualification Status Not Qualified
Power Supplies 1/5V
Temperature Grade INDUSTRIAL
Number of Channels 3
Max Supply Voltage 5.5V
Min Supply Voltage 800mV
Power Dissipation-Max 714mW
Operating Supply Current 15μA
Adjustable Threshold NO
Watchdog Timer Yes
Reset Active Low
Voltage - Threshold 2.925V
Number of Voltages Monitored 3
Reset Timeout 140 ms
Undervoltage Threshold 765mV
Overvoltage Threshold 810mV
Dimensions
Height Seated (Max) 1.45mm
Length 2.9mm
Width 1.625mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
