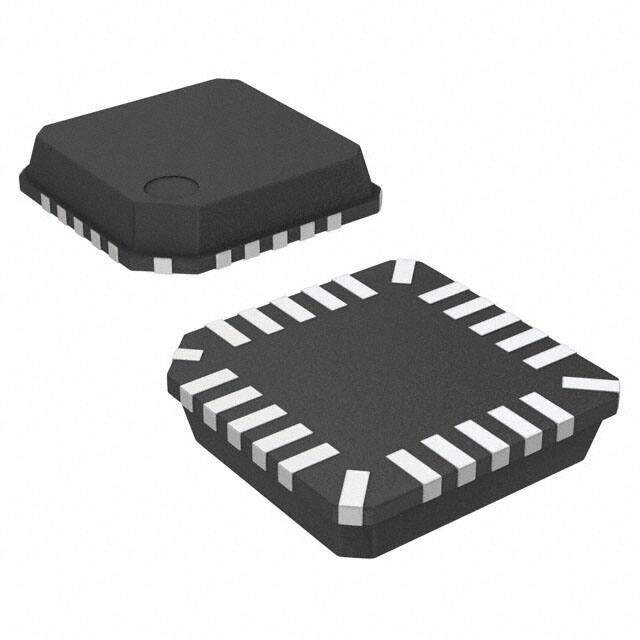

BH6942KN-E2
RoHS
RoHS compliant
RoHS compliantPackage 20-VFQFN
Category Integrated Circuits (ICs) / PMIC - LED Drivers
Description
Tape & Reel (TR) BH6942 Switched Capacitor (Charge Pump) Surface Mount led driver 4.2mm 20mA 3.3V 530mW
PDF
/
Inventory: 1676
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Plating Copper, Tin
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 20-VFQFN
Number of Pins 20
Technical
Operating Temperature -30°C~80°C TA
Packaging Tape & Reel (TR)
Published 2005
Pbfree Code yes
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 20
ECCN Code EAR99
Type DC DC Regulator
Subcategory Display Drivers
Terminal Position QUAD
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 3.6V
Frequency 1.2MHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number BH6942
Pin Count 20
Number of Outputs 5
Qualification Status Not Qualified
Operating Supply Voltage 3.3V
Power Supplies 3.6V
Power Dissipation 530mW
Topology Switched Capacitor (Charge Pump)
Current - Output / Channel 20mA
Internal Switch(s) Yes
Number of Segments 5
Voltage - Supply (Max) 4.5V
Voltage - Supply (Min) 2.8V
Multiplexed Display Capability NO
