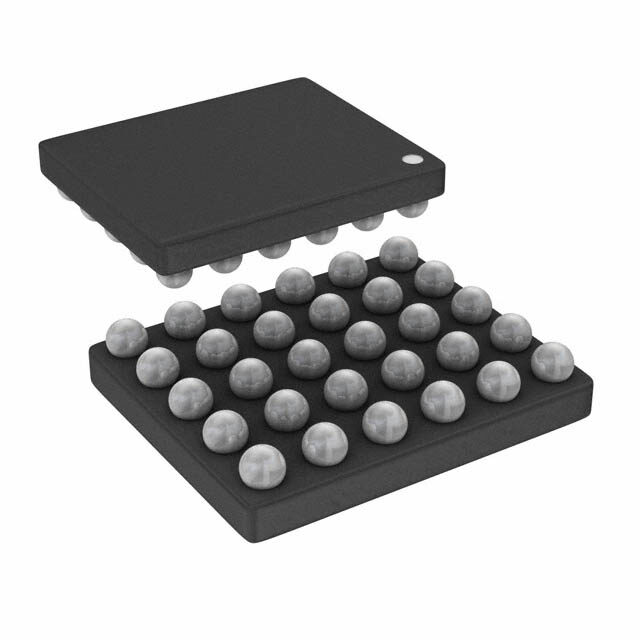

RT4832AWSC
RoHS
RoHS compliant
RoHS compliantPackage 30-UFBGA, WLCSP
Category Integrated Circuits (ICs) / PMIC - LED Drivers
Description
Tape & Reel (TR) Step-Up (Boost) I2C PWM Surface Mount led driver 0.6mm 1.5A 3.6V 2MHz
PDF
/
Buying Options
Total Price: USD $3.52
Unit Price: USD $3.52
≥1 USD $3.52
≥10 USD $3.15832
≥100 USD $2.985664
≥500 USD $2.58764
≥1000 USD $2.454918
≥3000 USD $2.202781
Inventory: 2949
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mounting Type Surface Mount
Package / Case 30-UFBGA, WLCSP
Surface Mount YES
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Published 2017
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 30
Type DC DC Regulator
Applications Backlight
Terminal Position BOTTOM
Terminal Form BALL
Number of Functions 1
Supply Voltage 3.6V
Terminal Pitch 0.4mm
Frequency 2MHz
JESD-30 Code R-PBGA-B30
Number of Outputs 2
Output Current 1.5A
Voltage - Output 37V
Topology Step-Up (Boost)
Internal Switch(s) Yes
Dimming I2C, PWM
Number of Segments 21
Voltage - Supply (Max) 5.5V
Voltage - Supply (Min) 2.5V
Multiplexed Display Capability NO
Data Input Mode SERIAL
Dimensions
Height Seated (Max) 0.6mm
Compliance
RoHS Status ROHS3 Compliant
