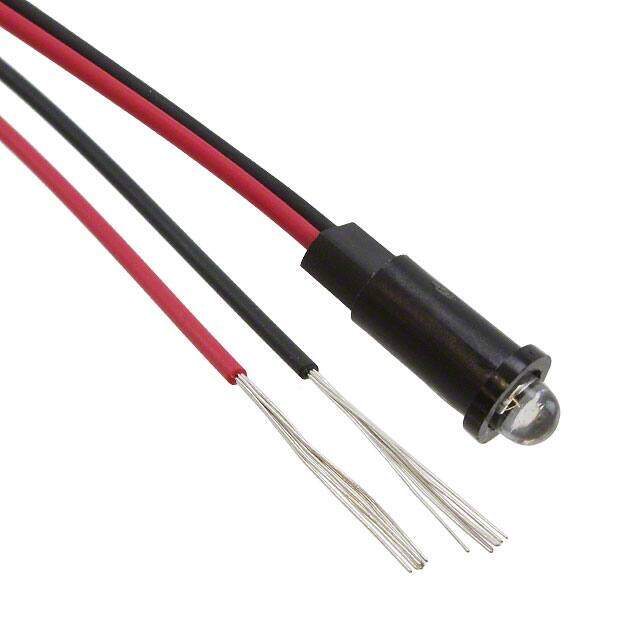

5580501007F
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description
LED PANEL IND GRN SNAP-IN
PDF
/
Buying Options
Total Price: USD $2.7
Unit Price: USD $2.7016
≥1 USD $2.7016
≥10 USD $1.79872
≥100 USD $1.384416
≥500 USD $1.25143
≥1000 USD $1.075448
≥3000 USD $1.016787
Inventory: 895
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Surface Mount NO
Mounting Feature PANEL MOUNT
Panel Cutout Shape Round
Technical
Published 2006
Series 558
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Type LED
Terminal Finish Copper/Nickel/Silver (Cu/Ni/Ag)
Additional Feature IC COMPATIBLE, HIGH RELIABILITY
HTS Code 8541.40.20.00
Packing Method BULK
Number of Functions 1
Terminal Pitch 2.54mm
Termination Style Wire Leads - 14 (355.60mm)
Operating Temperature (Max) 100°C
Operating Temperature (Min) -55°C
Panel Cutout Dimensions 0.16 (4.06mm)
Configuration SINGLE
Voltage 2.1V
Current 40mA
Viewing Angle 45 deg
Lens Style Round with Domed Top
Lens Size 3mm T-1
Luminous Intensity 70.0 mcd
Millicandela Rating 70mcd
Lens Transparency Clear
Wavelength - Peak 565nm
Lens Color Colorless
Overall Height 4.78mm
Lamp Color Green
T-code T-1
Compliance
RoHS Status ROHS3 Compliant
Ratings Vf (Typ), If (Max)
