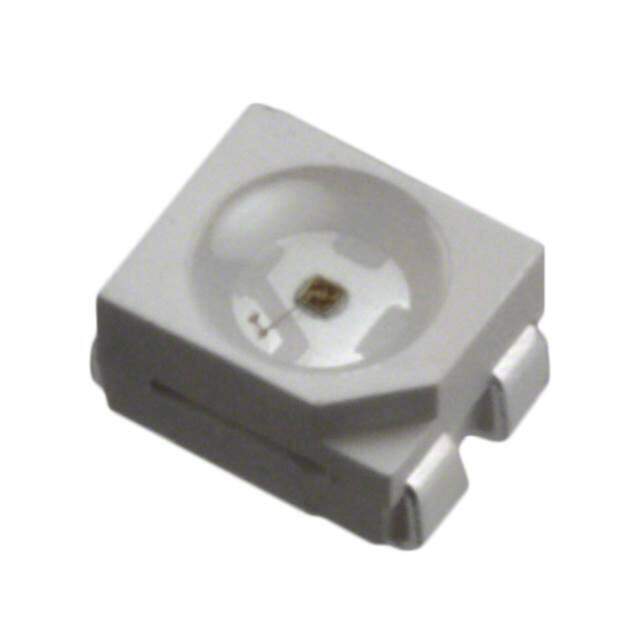

OVSA1SBC2R8
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, J-Lead
Category Optoelectronics / LED Indication - Discrete
Description
LED RED CLEAR 4PLCC SMD
PDF
/
Buying Options
Total Price: USD $0.86
Unit Price: USD $0.85646
≥1 USD $0.85646
≥10 USD $0.80799
≥100 USD $0.76225
≥500 USD $0.7191
≥1000 USD $0.6784
≥3000 USD $0.64
Inventory: 6888
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Height (Max) 1.95mm
Width 2.7mm
Length 3.2mm
Height 1.95mm
Technical
Wavelength - Dominant 624nm
Wavelength 635 nm
Reverse Voltage 5V
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 1600mcd
Luminous Intensity 1.6 cd
Forward Voltage 2.4V
Lens Style Round with Flat Top
Current - Test 50mA
Forward Current 20mA
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 2.4V
Power Dissipation 210mW
Configuration Standard
Number of Elements 1
Depth 3.2mm
Color Red
Min Operating Temperature -40°C
Max Operating Temperature 100°C
Moisture Sensitivity Level (MSL) 5A (24 Hours)
Part Status Active
Size / Dimension 3.20mm Lx2.70mm W
Published 2006
Packaging Tape & Reel (TR)
Physical
Supplier Device Package 4-PLCC
Number of Pins 4
Package / Case 4-SMD, J-Lead
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
