192A1355
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description

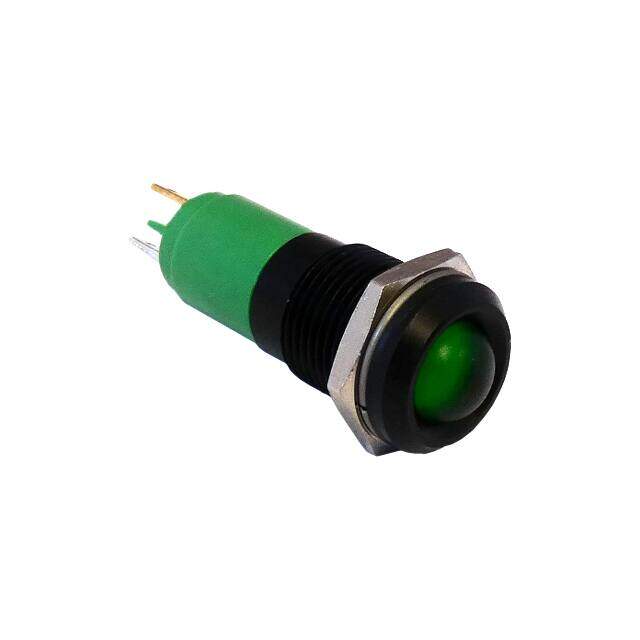

CML INNOVATIVE TECHNOLOGIES 192A1355LED Panel Mount Indicator, Black Chrome Bezel, Green, 14 mm, 24 V, 17 mA, 1.25 cd, IP67
PDF
/
Buying Options
Total Price: USD $10.13
Unit Price: USD $10.1288
≥1 USD $10.1288
Inventory: 115
Minimum: 1
-
+
Technical Details
Compliance
Ratings AC/DC
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height 2mm
Technical
T-code T-4
Lens Color Green
Wavelength - Peak 565 nm
Millicandela Rating 2700mcd
Luminous Intensity 1.25 cd
Forward Voltage 24V
Size 10mm
Lens Style Round with Domed Top
Forward Current 17mA
Current 18mA
Life (Hours) 100 hours
Configuration SINGLE
Panel Cutout Dimensions 0.551 (14.00mm)
Operating Supply Voltage 24V
Approval Agency UL, VDE
Voltage - Rated AC 24V
Termination Style Quick Connect - 0.354 (9.00mm)
Ingress Protection IP67
Number of Functions 1
Packing Method BULK
HTS Code 8541.40.20.00
Voltage - Rated 24V
Min Operating Temperature -25°C
Max Operating Temperature 60°C
Type LED
Number of Terminations 2
Part Status Active
Series 192A
Published 2006
Physical
Panel Cutout Shape Round
Material Brass
Mount Panel
