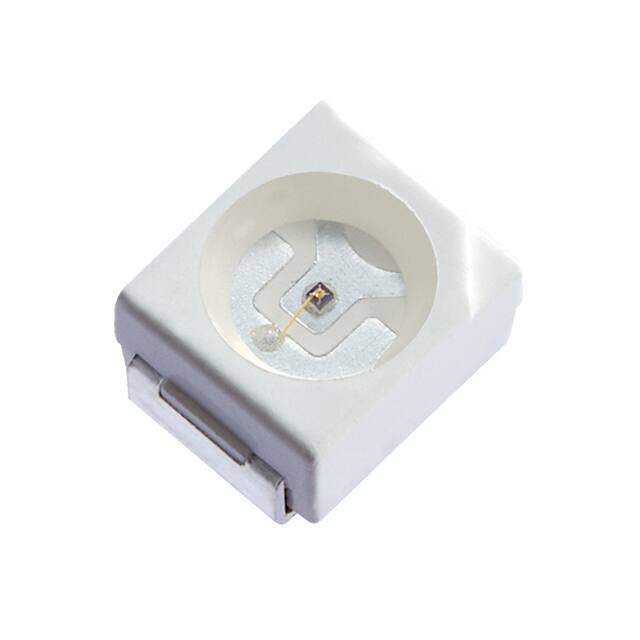

AA3528SECK
RoHS
RoHS compliant
RoHS compliantPackage 2-PLCC
Category Optoelectronics / LED Indication - Discrete
Description
Standard LEDs - SMD ORANGE WATER CLEAR
PDF
/
Buying Options
Total Price: USD $0.4
Unit Price: USD $0.396
≥1 USD $0.396
≥10 USD $0.24552
≥100 USD $0.141064
≥500 USD $0.110387
Inventory: 5596
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height (Max) 2.15mm
Technical
Reverse Voltage-Max 5V
Wavelength - Dominant 601nm
Overall Height 1.8mm
Forward Voltage-Max 2.5V
Lens Color Colorless
Wavelength - Peak 610nm
Lens Transparency Clear
Millicandela Rating 350mcd
Luminous Intensity 300 mcd
Lens Size 2.40mm Dia
Lens Style Round with Flat Top
Forward Current 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 2.1V
Configuration Independent
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Terminal Pitch 3.1mm
Number of Functions 1
Packing Method TAPE AND REEL
Subcategory Visible LEDs
HTS Code 8541.40.20.00
Color Orange
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Size / Dimension 3.20mm Lx2.80mm W
Published 2005
Packaging Tape & Reel (TR)
Physical
Package / Case 2-PLCC
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
