19040351
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description

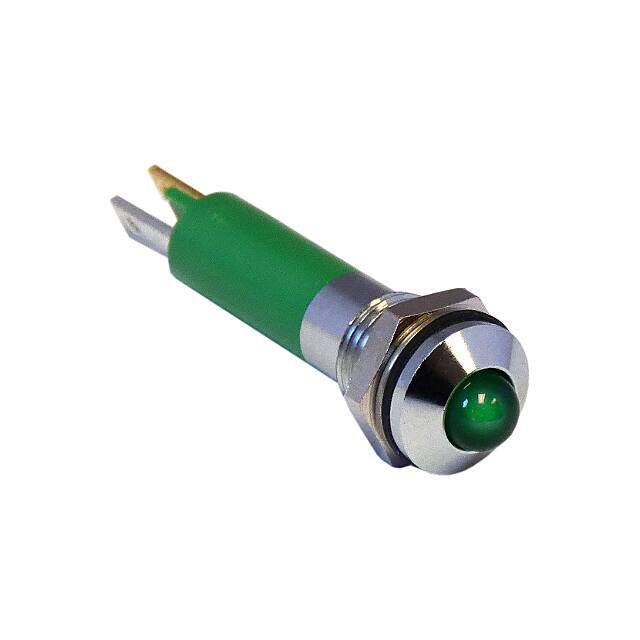

CML INNOVATIVE TECHNOLOGIES 19040351 LED Panel Mount Indicator, Satin Chrome Bezel, Green, 8 mm, 24 VDC, 20 mA, 32 mcd, IP67
PDF
/
Buying Options
Total Price: USD $3.85
Unit Price: USD $3.8456
≥1 USD $3.8456
Inventory: 161
Minimum: 1
-
+
Technical Details
Compliance
Ratings DC
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Length 11.55mm
Height 43.9928mm
Technical
Dominant Wavelength 568 nm
Lens Color Green
Wavelength - Peak 565 nm
Millicandela Rating 44mcd
Luminous Intensity 32 mcd
Forward Voltage 24V
Lens Style Round with Domed Top
Forward Current 20mA
Current 22mA
Life (Hours) 100000 hours
Configuration SINGLE
Panel Cutout Dimensions 0.315 (8.00mm)
Number of Elements 1
Approval Agency UL, VDE
Voltage - Rated AC 24V
Termination Style Quick Connect - 0.354 (9.00mm)
Current Rating 20mA
Depth 10mm
Ingress Protection IP67
Number of Functions 1
Packing Method BULK
Voltage - Rated 24V
Min Operating Temperature -20°C
Max Operating Temperature 60°C
Type LED
Number of Terminations 2
Part Status Active
Pbfree Code yes
Series 1904
Published 2001
Physical
Panel Cutout Shape Round
Dielectric Material Chrome
Number of Pins 2
Mount Panel, Through Hole
