HLMP-CW76-PQBDD
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description
LED COOL WHITE DIFF T-1 3/4 T/H
PDF
/
Inventory: 1546
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height (Max) 8.91mm
Technical
Reverse Voltage-Max 5V
Overall Height 8.71mm
Forward Voltage-Max 4V
Forward Current-Max 0.03A
Lens Transparency Diffused
Millicandela Rating 1190mcd
Luminous Intensity 1190.0 mcd
Lens Size 5mm T-1 3/4
Lens Style Round with Domed Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 70°
Voltage - Forward (Vf) (Typ) 3.2V
Configuration Standard
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Base Part Number HLMP-CW76
Reach Compliance Code compliant
Terminal Pitch 2.54mm
Number of Functions 1
Packing Method AMMO PACK
Subcategory Visible LEDs
HTS Code 8541.40.20.00
Additional Feature HIGH RELIABILITY
Color White
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e1
Published 2006
Packaging Tape & Box (TB)
Physical
Surface Mount NO
Package / Case Radial
Mounting Type Through Hole

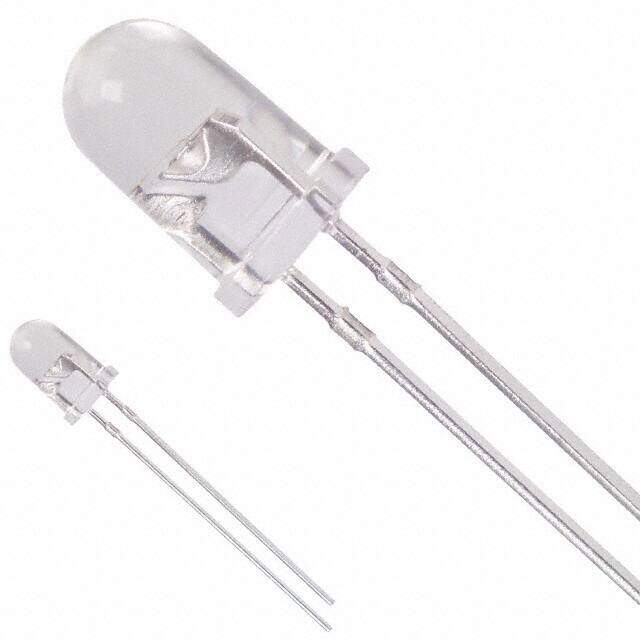

Alternative Model
