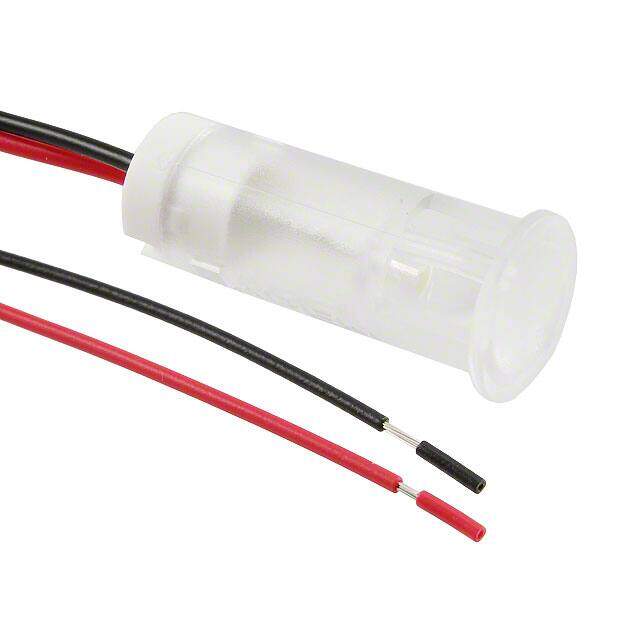

QS103XXW12
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description
LED Indicator;10mm;Plastic;Snap-In;Panel Mount;Fixed;White;12VDC;Wire
PDF
/
Inventory: 9724
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Snap in
Material PC, Polycarbonate
Panel Cutout Shape Round
Technical
Series QS
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Wire Leads
Type LED
Max Operating Temperature 85°C
Min Operating Temperature -30°C
Voltage - Rated 12V
HTS Code 8541.40.20.00
Current Rating 20mA
Termination Style Wire Leads - 7.87 (200.00mm)
Panel Cutout Dimensions 0.39 (9.91mm)
Viewing Angle 30°
Forward Current 20mA
Lens Style Round with Flat Top
Lens Size 12.00mm Dia
Forward Voltage 3.3V
Luminous Intensity 1.2 cd
Millicandela Rating 1200mcd
Lens Transparency Diffused
Lamp Color White
Dimensions
Length 28.25mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Ratings DC
