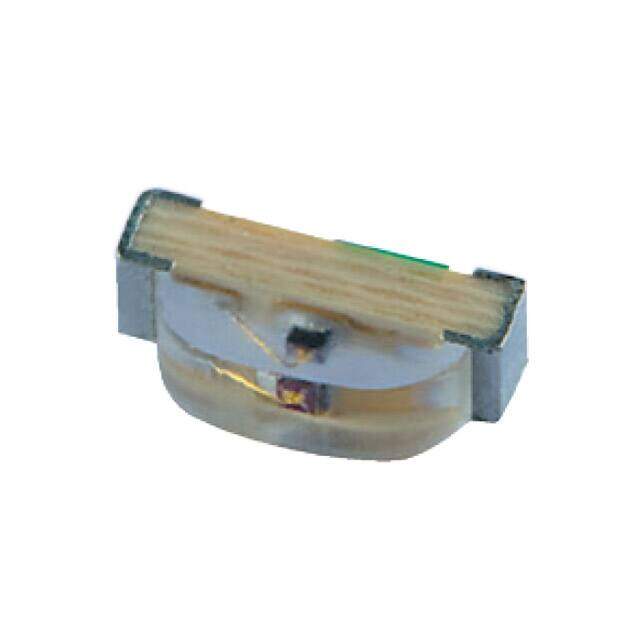

XZMYK74W
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, No Lead
Category Optoelectronics / LED Indication - Discrete
Description
LED YELLOW CLEAR 2SMD R/A
PDF
/
Buying Options
Total Price: USD $0.33
Unit Price: USD $0.3256
≥1 USD $0.3256
≥10 USD $0.21296
≥100 USD $0.141856
≥500 USD $0.09812
≥1000 USD $0.08177
Inventory: 59
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Package / Case 2-SMD, No Lead
Shape RECTANGULAR
Technical
Packaging Cut Tape (CT)
Published 2008
Size / Dimension 2.10mm Lx1.00mm W
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
ECCN Code EAR99
Color Yellow
HTS Code 8541.40.20.00
Packing Method TAPE AND REEL
Number of Functions 1
Terminal Pitch 2.6mm
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Configuration Standard
Voltage - Forward (Vf) (Typ) 2V
Viewing Angle 120°
Optoelectronic Device Type SINGLE COLOR LED
Current - Test 20mA
Lens Style Rectangle with Domed Top
Lens Size 1.70mmx0.60mm
Luminous Intensity 148 mcd
Lens Transparency Clear
Lens Color Colorless
Forward Current-Max 0.03A
Wavelength - Dominant 590nm
Peak Wavelength 590 nm
Dimensions
Height 600μm
Compliance
RoHS Status ROHS3 Compliant
