QS101XXHY110
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description

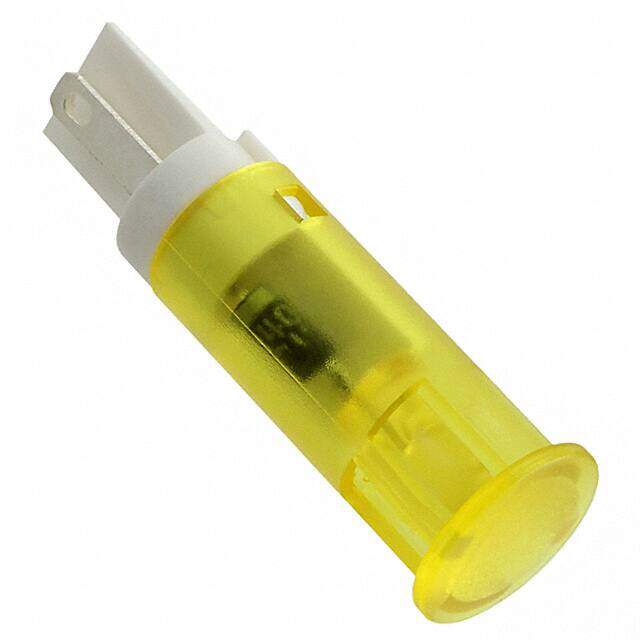

LED Indicator;10mm;Plastic;Snap-In;Panel Mount;Fixed;Hyper Yellow;110VAC;Solder
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Snap in
Panel Cutout Shape Round
Technical
Series QS
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type LED
Max Operating Temperature 85°C
Min Operating Temperature -30°C
Voltage - Rated 110V
HTS Code 8541.40.20.00
Current Rating 6mA
Termination Style Solder Lug
Operating Supply Voltage 110V
Panel Cutout Dimensions 0.39 (9.91mm)
Viewing Angle 45°
Forward Current 6mA
Lens Style Round with Flat Top
Lens Size 12.00mm Dia
Forward Voltage 2V
Luminous Intensity 380 mcd
Lens Transparency Diffused
Lamp Color Yellow
Dimensions
Length 28.25mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Ratings AC
