Q8P3CXXR12E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description

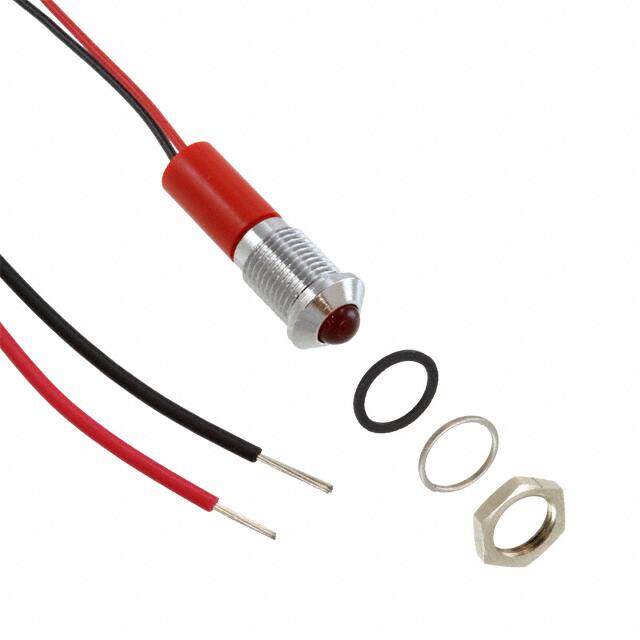

LED PM INDICATOR PROMINENT RED
PDF
/
Buying Options
Total Price: USD $15.61
Unit Price: USD $15.6112
≥1 USD $15.6112
≥10 USD $11.7744
≥100 USD $9.890496
≥500 USD $9.083096
≥1000 USD $8.578478
Inventory: 370
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Panel
Panel Cutout Shape Round
Technical
Series Q Series
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Wire Leads
Type LED
Voltage - Rated 12V
Additional Feature UL RECOGNIZED
HTS Code 8541.40.20.00
Packing Method BULK
Number of Functions 1
Ingress Protection IP67
Current Rating 20mA
Termination Style Wire Leads - 7.87 (200.00mm)
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Panel Cutout Dimensions 0.31 (7.87mm)
Configuration SINGLE
Viewing Angle 100°
Lens Style Round with Domed Top
Lens Size 5mm T-1 3/4
Luminous Intensity 100 mcd
Millicandela Rating 100mcd
Lens Transparency Diffused
Overall Height 5.1mm
Lamp Color Red
Dimensions
Length 22.5mm
Compliance
RoHS Status ROHS3 Compliant
Ratings DC
