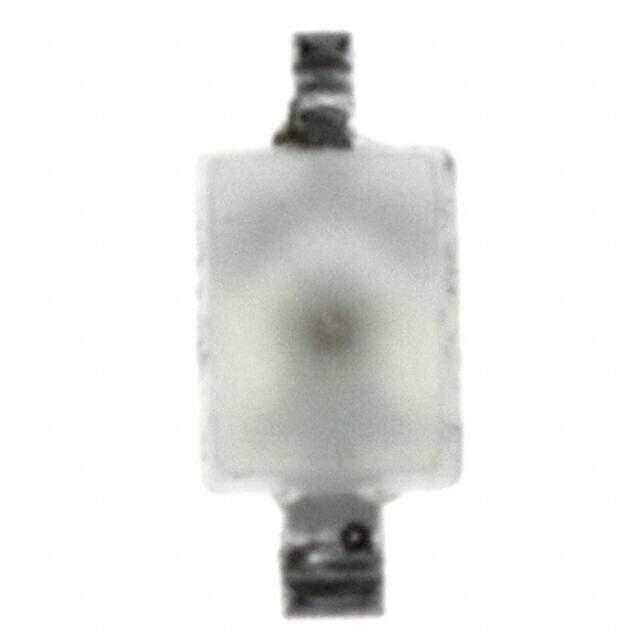

LNJ306G5TUWQ image
Favorite
LNJ306G5TUWQ image
Favorite
RoHS
/
Package 0805 (2012 Metric)
Category Optoelectronics / LED Indication - Discrete
Description LED GREEN DIFFUSED SMD
PDF
/
Inventory: 8212
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status RoHS Compliant

Dimensions

Height (Max) 1.10mm
Width 1.25mm
Length 1.7mm
Height 900μm

Technical

Wavelength 565 nm
Lens Color Green
Wavelength - Peak 565nm
Lens Transparency Diffused
Millicandela Rating 5mcd
Luminous Intensity 5 mcd
Forward Voltage 2.03V
Lens Size 1.70mmx1.25mm
Lens Style Rectangle with Flat Top
Current - Test 10mA
Voltage - Forward (Vf) (Typ) 2.03V
Configuration Standard
Case Code (Imperial) 0805
Case Code (Metric) 2012
Base Part Number LNJ*06
Color Green
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Size / Dimension 1.70mm Lx1.25mm W
Published 2001
Packaging Tape & Reel (TR)

Physical

Supplier Device Package SMD
Package / Case 0805 (2012 Metric)
Mounting Type Surface Mount
Mount Surface Mount
