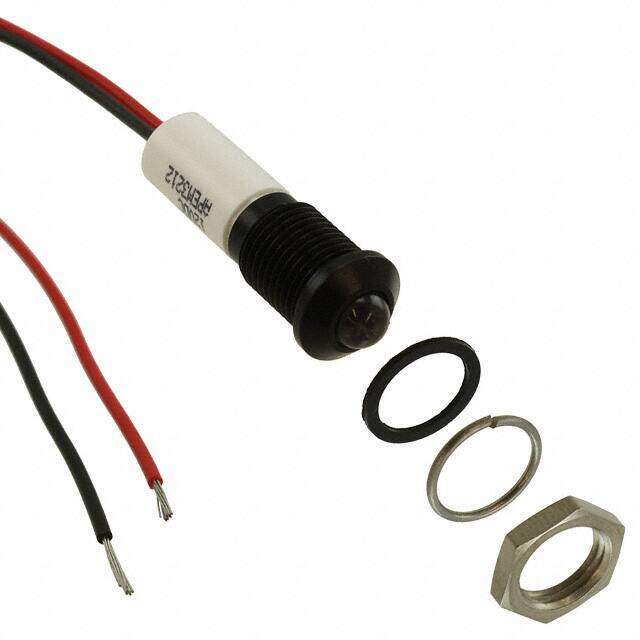

Q8P3BXXW24E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description
LED PM INDICATOR PROMINENT WHITE
PDF
/
Buying Options
Total Price: USD $19.1
Unit Price: USD $19.1048
≥1 USD $19.1048
≥10 USD $14.960704
≥100 USD $13.068
≥500 USD $11.986533
Inventory: 130
Minimum: 1
-
+
Technical Details
Compliance
Ratings DC
RoHS Status ROHS3 Compliant
Dimensions
Length 22.5mm
Technical
Lamp Color White
Overall Height 5.1mm
Lens Transparency Diffused
Millicandela Rating 1600mcd
Luminous Intensity 1.6 cd
Lens Size 5mm T-1 3/4
Lens Style Round with Domed Top
Viewing Angle 100°
Configuration SINGLE
Panel Cutout Dimensions 0.31 (7.87mm)
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Termination Style Wire Leads - 7.87 (200.00mm)
Current Rating 20mA
Ingress Protection IP67
Number of Functions 1
Packing Method BULK
HTS Code 8541.40.20.00
Additional Feature UL RECOGNIZED
Voltage - Rated 24V
Type LED
Termination Wire Leads
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Q Series
Physical
Panel Cutout Shape Round
Mount Panel
Supply Chain
Factory Lead Time 9 Weeks
