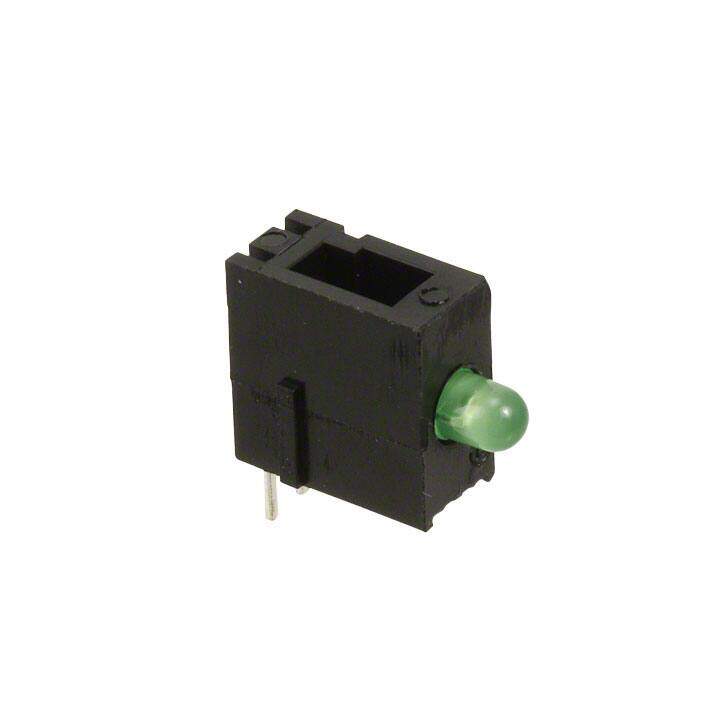

5510601F
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description
LED CBI 3MM DIN GRN DIFF RA 5V
PDF
/
Buying Options
Total Price: USD $1.15
Unit Price: USD $1.149432
≥1 USD $1.149432
≥10 USD $1.084367
≥100 USD $1.022991
≥500 USD $0.965083
≥1000 USD $0.91046
Inventory: 1243
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
T-code T-1
Overall Height 10mm
Forward Voltage-Max 5V
Wavelength - Peak 565nm
Millicandela Rating 19mcd
Lens Type Diffused, Tinted
Luminous Intensity 19.0 mcd
Lens Size 3mm T-1
Lens Style Round with Domed Top
Viewing Angle 60°
Current 10mA
Configuration Single
Operating Temperature (Min) -20°C
Operating Temperature (Max) 85°C
Terminal Pitch 2.54mm
Number of Functions 1
Subcategory Visible LEDs
HTS Code 8541.40.20.00
Additional Feature HIGH RELIABILITY
Voltage - Rated 5V
Color Green
Terminal Finish Copper/Nickel/Silver (Cu/Ni/Ag)
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series 551
Published 1999
Packaging Bulk
Physical
Mounting Feature RADIAL MOUNT
Surface Mount NO
Mounting Type Through Hole, Right Angle
Supply Chain
Factory Lead Time 10 Weeks
