Q6R3CXXR12E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description

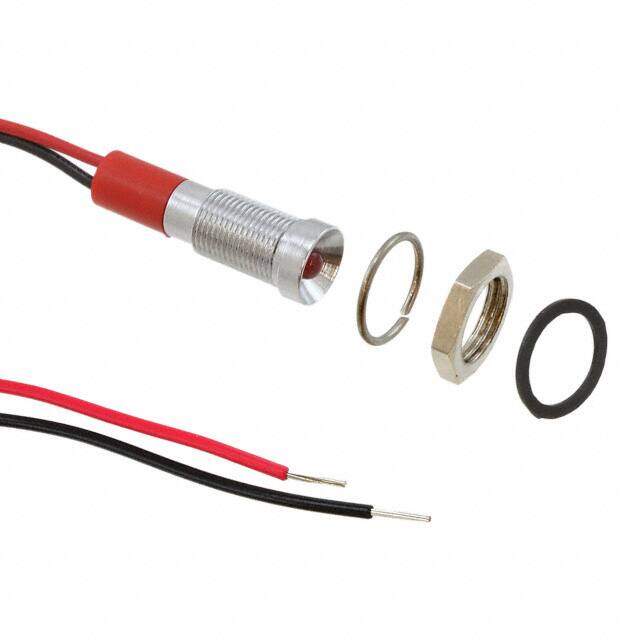

LED PM INDICATOR RECESSED RED
PDF
/
Inventory: 3768
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Vf (Typ), If (Max)
RoHS Status ROHS3 Compliant
Dimensions
Length 18.75mm
Technical
Lamp Color Red
Overall Height 2.25mm
Lens Transparency Diffused
Millicandela Rating 40mcd
Luminous Intensity 40 mcd
Lens Size 3mm T-1
Lens Style Round with Domed Top
Viewing Angle 100°
Configuration SINGLE
Panel Cutout Dimensions 0.24 (6.10mm)
Termination Style Wire Leads - 7.87 (200.00mm)
Current Rating 20mA
Ingress Protection IP67
Number of Functions 1
Packing Method BULK
HTS Code 8541.40.20.00
Additional Feature UL RECOGNIZED
Voltage - Rated 12V
Type LED
Termination Wire Leads
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Q Series
Physical
Panel Cutout Shape Round
Mount Panel
Supply Chain
Factory Lead Time 9 Weeks
