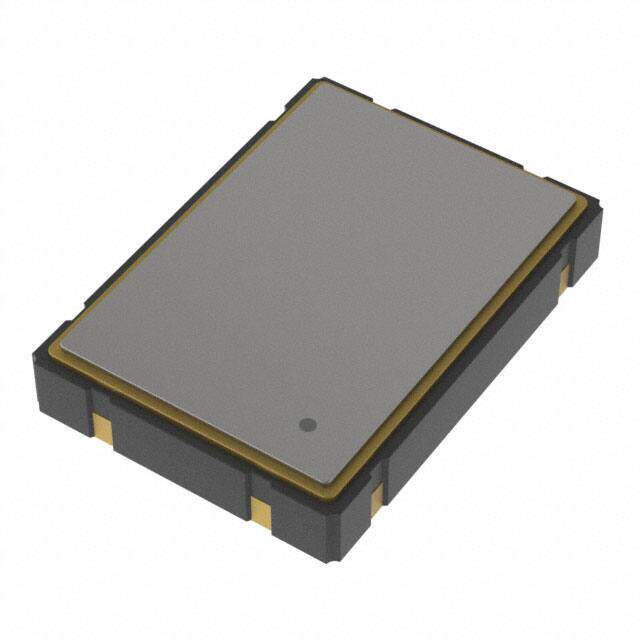

CA70C3007NMT
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
XTAL OSC XO 30.0MHZ 1.8V SMD
PDF
/
Inventory: 6055
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Surface Mount YES
Technical
Operating Temperature -40°C~150°C
Packaging Tape & Reel (TR)
Series CA70
Size / Dimension 0.276Lx0.197W 7.00mmx5.00mm
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Type XO (Standard)
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Voltage - Supply 1.8V
Supply Voltage 1.8V
Frequency 30MHz
Frequency Stability ±150ppm
Output HCMOS, TTL
Function Enable/Disable
Base Resonator Crystal
Current - Supply (Max) 25mA
Physical Dimension 7.0mm x 5.0mm x 1.4mm
Operating Frequency 30MHz
Rise Time-Max 5ns
Fall Time-Max 5ns
Symmetry-Max 55/45%
Current - Supply (Disable) (Max) 10μA
Dimensions
Height Seated (Max) 0.055 1.40mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
