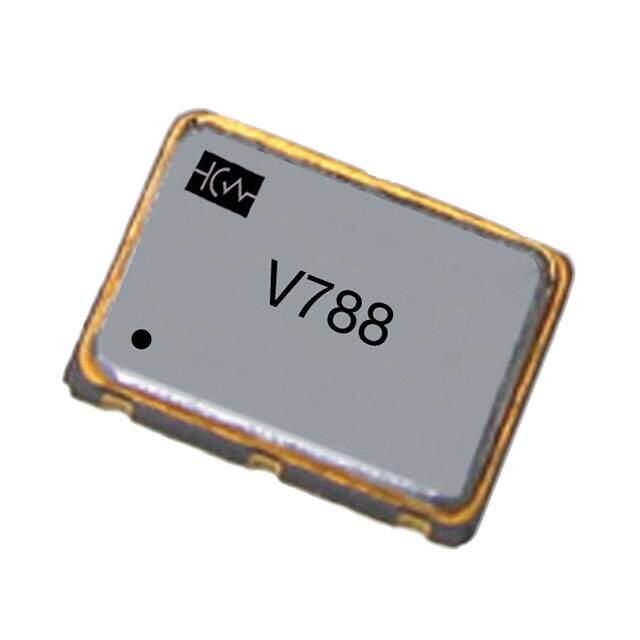

V788-622.08M
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
Crystal RoHS Compliant Enable/Disable Active crystal oscillator 55/45% -40C~85C 0.45ns 10%
PDF
/
Buying Options
Total Price: USD $11.78
Unit Price: USD $11.779759
≥1 USD $11.779759
≥10 USD $11.112976
≥100 USD $10.483946
≥500 USD $9.890509
≥1000 USD $9.33067
Inventory: 1089
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.071 1.80mm
Technical
Absolute Pull Range (APR) ±30ppm
Control Voltage-Min 0.3V
Control Voltage-Max 3V
Linearity 10%
Symmetry-Max 55/45%
Fall Time-Max 0.45ns
Rise Time-Max 0.45ns
Operating Frequency 622.08MHz
Physical Dimension 7.0mm x 5.0mm x 1.8mm
Current - Supply (Max) 100mA
Base Resonator Crystal
Function Enable/Disable
Output LVPECL
Frequency Stability ±20ppm
Frequency 622.08MHz
Supply Voltage 3.3V
Voltage - Supply 3.3V
Type VCXO
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Size / Dimension 0.276Lx0.197W 7.00mmx5.00mm
Series V788
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Surface Mount YES
Package / Case 6-SMD, No Lead
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
