30-00670
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

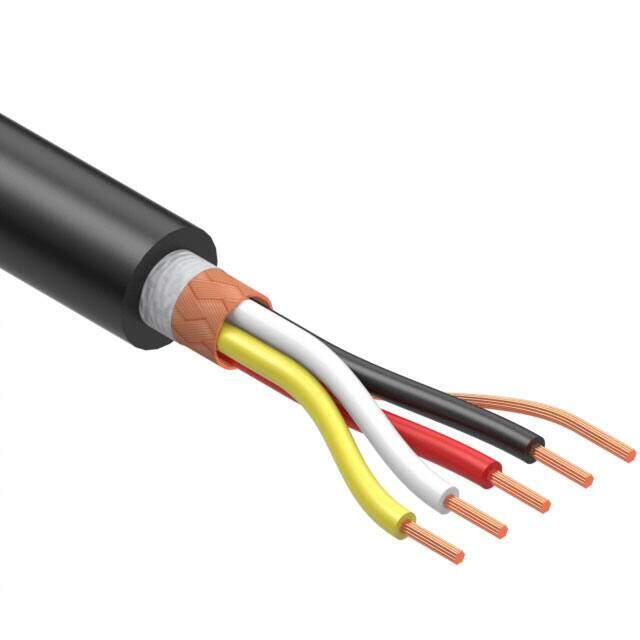

CBL 28AWG TPU SHLD 4CON 153M
PDF
/
Buying Options
Total Price: USD $19.2
Unit Price: USD $19.2016
≥1 USD $19.2016
≥10 USD $15.70976
≥100 USD $12.21792
Inventory: 27
Minimum: 1
-
+
Technical Details
Compliance
Ratings UL Style 20280
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0323 0.820mm
Length 502.0' 153.0m
Technical
Shield Coverage 65%
Shield Type Braid
Conductor Insulation Thermoplastic Elastomer (TPE)
Jacket (Insulation) Diameter 0.165 (4.19mm)
Conductor Strand 19/0.0031
Jacket Color Black
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 28 AWG
Number of Conductors 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Spool
Operating Temperature -40°C~80°C
Physical
Shield Material Copper, Bare
Jacket (Insulation) Material Thermoplastic Polyurethane (TPU)
Conductor Material Copper, Bare
Supply Chain
Factory Lead Time 15 Weeks
