C4063A.30.10 image
Favorite
C4063A.30.10 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Cables, Wires / Multiple Conductor Cables

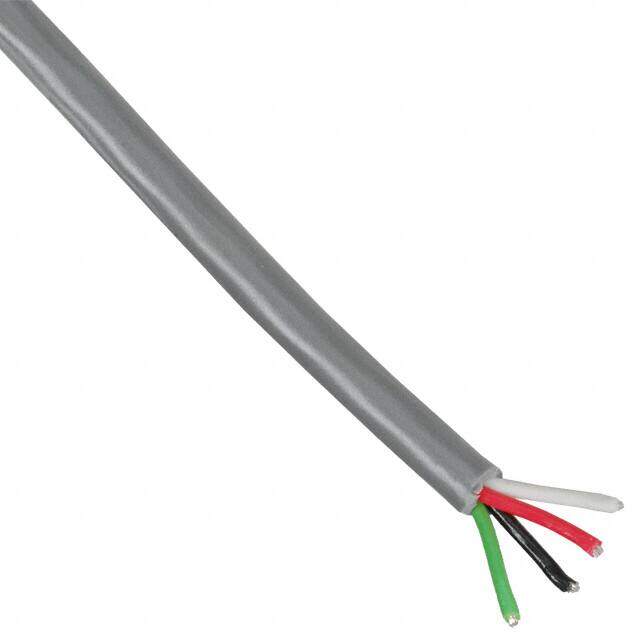

Description CABLE 4COND 22AWG GRAY 1000'
PDF
/
Inventory: 3570
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Cable
Insulation Material PVC
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)

Technical

Operating Temperature -20°C~80°C
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 80°C
Min Operating Temperature -20°C
Color Grey
Number of Conductors 4
Wire Gauge 22 AWG
Voltage 300V
Cable Type Multi-Conductor
Wire/Cable Type Multi-Conductor
Wire/Cable Gauge 22 AWG
Jacket Color Gray
Conductor Strand 7/30
Usage Communication, Control
Jacket (Insulation) Diameter 0.189 (4.80mm)
Insulation Diameter 4.8006 mm
Conductor Insulation Poly-Vinyl Chloride (PVC)

Dimensions

Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0320 0.813mm
Insulation Thickness 812.8μm

Compliance

RoHS Status RoHS Compliant
