E2104S.41.86
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables

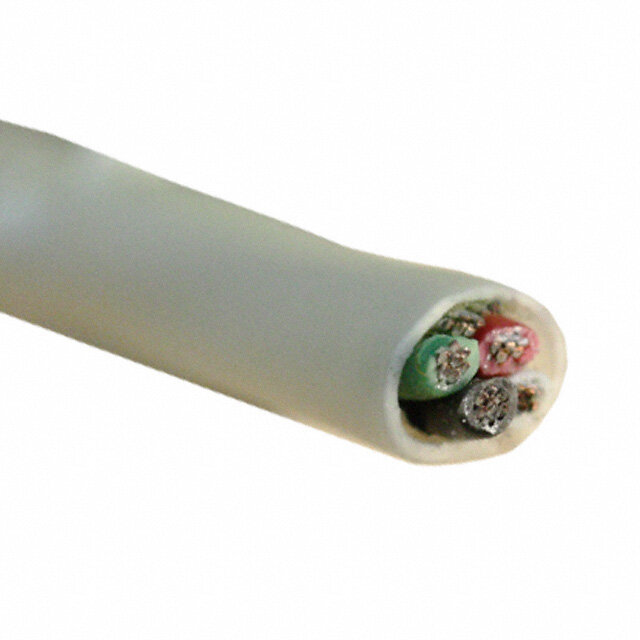

Description
Cable;4Cond;22AWG;7x30;BC;PVC ins;Foil;Natural PVC jkt;CMP
PDF
/
Buying Options
Total Price: USD $0.19
Unit Price: USD $0.190705
≥1 USD $0.190705
≥10 USD $0.17915
≥100 USD $0.169902
≥500 USD $0.161814
≥1000 USD $0.151413
≥3000 USD $0.150251
Inventory: 1040
Minimum: 1
-
+
Technical Details
Technical
Jacket Color Natural
Conductor Strand 7/30
Usage Alarm, Security, Sound
Jacket (Insulation) Diameter 0.147 (3.73mm)
Insulation Diameter 3.7338 mm
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil
Shield Coverage 100%
Wire/Cable Gauge 22 AWG
Wire/Cable Type Multi-Conductor
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 22 AWG
Approval Agency UL
Number of Conductors 4
Voltage - Rated DC 300V
Color Natural
Min Operating Temperature 0°C
Max Operating Temperature 75°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Drain Wire
Operating Temperature 0°C~75°C
Dimensions
Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0150 0.381mm
Insulation Thickness 381μm
Compliance
RoHS Status RoHS Compliant
Physical
Shield Material Flexfoil?
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC), Plenum
Conductor Material Copper, Bare
Insulation Material PVC
Mount Cable
Supply Chain
Factory Lead Time 6 Weeks
