9533 060500
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

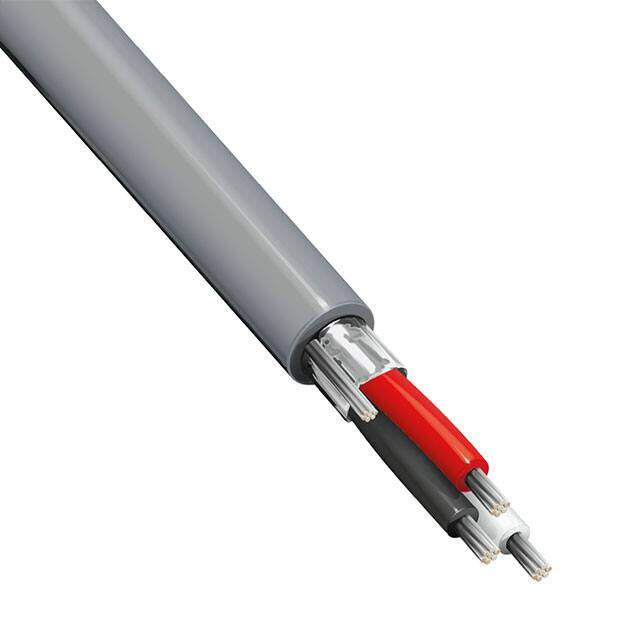

CABLE 3COND 24AWG CHROME 500'
PDF
/
Buying Options
Total Price: USD $663.41
Unit Price: USD $663.4056
≥1 USD $663.4056
≥10 USD $613.74133
≥100 USD $592.45648
≥500 USD $578.2656
≥1000 USD $564.0756
Inventory: 79
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0320 0.813mm
Length 500.0' 152.4m
Technical
Wire and Cable Name FLEXIBLE CORD AND FIXTURE WIRE
Shield Coverage 100%
Shield Type Foil
Rated Current 1.75A
Conductor Insulation Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.162 (4.11mm)
Usage Computer
Conductor Strand 7/32
Jacket Color Chrome
Cable Type Multi-Conductor
Connector Support Type WIRE AND CABLE
Wire Gauge 24 AWG
Approval Agency UL
Number of Conductors 3
Construction STRANDED
Shielding NO
Resistance 0.082Ohm
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Drain Wire
Published 2011
Packaging Spool
Operating Temperature -30°C~80°C
Physical
Shield Material Aluminum
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
Insulation Material POLYVINYL CHLORIDE
Supply Chain
Factory Lead Time 4 Weeks
