C3065.41.86
RoHS
/
Package 100
Category Cables, Wires / Multiple Conductor Cables
Description

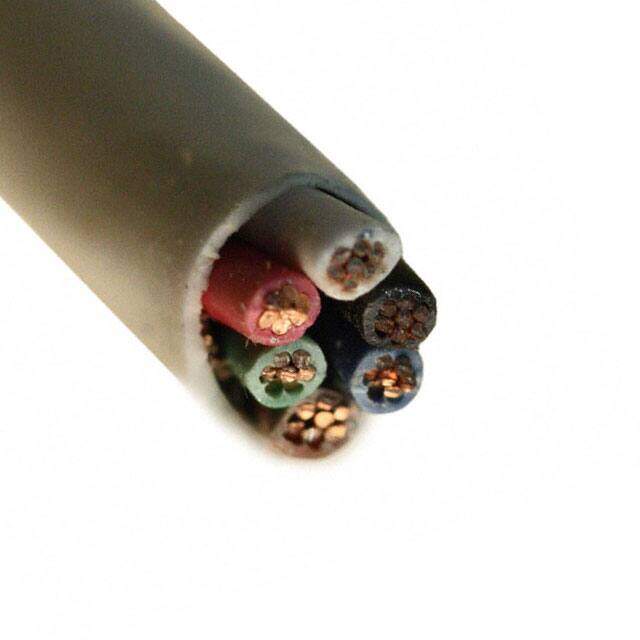

CABLE 6COND 18AWG NAT SHLD 1000
PDF
/
Buying Options
Total Price: USD $306.63
Unit Price: USD $306.6272
≥1 USD $306.6272
≥10 USD $250.87744
≥100 USD $195.12856
Inventory: 63
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Cable
Package / Case 100
Insulation Material PVC
Conductor Material Copper, Annealed Bare
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Flexfoil?
Technical
Operating Temperature 0°C~75°C
Feature Drain Wire, Rip Cord
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 75°C
Min Operating Temperature 0°C
Color Natural
Number of Conductors 6
Approval Agency UL
Wire Gauge 18 AWG
Voltage 150V
Cable Type Multi-Conductor
Wire/Cable Type Multi-Conductor
Wire/Cable Gauge 18 AWG
Jacket Color Natural
Conductor Strand 7/26
Usage Communication, Control
Jacket (Insulation) Diameter 0.230 (5.84mm)
Insulation Diameter 5.842 mm
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil
Shield Coverage 100%
Dimensions
Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0150 0.381mm
Insulation Thickness 381μm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Exempt
Ratings ASTM B-3
