221607
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

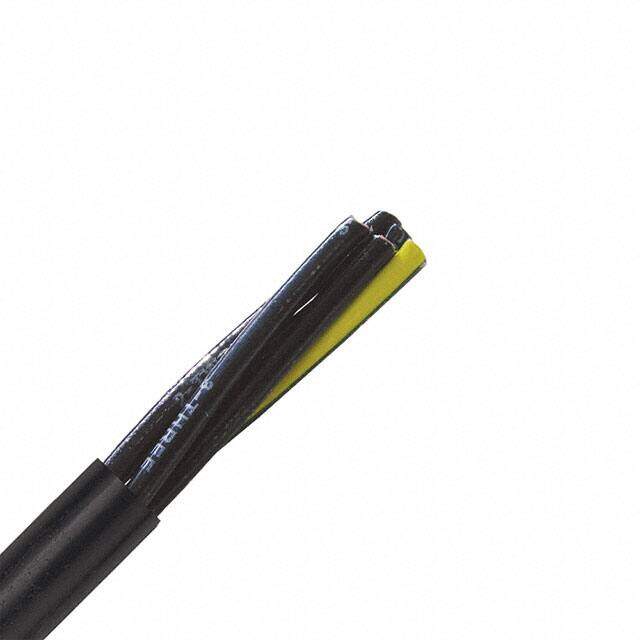

CABLE 7COND 16AWG BLACK FT
PDF
/
Buying Options
Total Price: USD $2.01
Unit Price: USD $2.0064
≥1 USD $2.0064
≥10 USD $1.8656
≥100 USD $1.7952
≥500 USD $1.749942
≥1000 USD $1.71424
≥3000 USD $1.606528
Inventory: 1173
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Length Enter Number of Feet in Order Quantity
Technical
Cross Section Area 1.5 mm2
Wire and Cable Name FLEXIBLE CORD AND FIXTURE WIRE
Rated Voltage 600V
Conductor Insulation Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon
Jacket (Insulation) Diameter 0.412 (10.46mm)
Usage Industrial
Conductor Strand 30/0.0102
Jacket Color Black
Cable Type Multi-Conductor
Connector Support Type WIRE AND CABLE
Wire Gauge 16 AWG
Operating Temperature (Min) -25°C
Operating Temperature (Max) 90°C
Approval Agency CE; CSA; CUL; MSHA; UL
Number of Conductors 7
Construction STRANDED
Shielding NO
Additional Feature VNTC CABLES
Resistance 888Ohm
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Oil Resistant
Series ?LFLEX?
Packaging Digi-Spool?, Continuous Spool
Physical
Jacket (Insulation) Material Thermoplastic Polymer
Conductor Material Copper, Bare
Insulation Material PVC/NYLON
