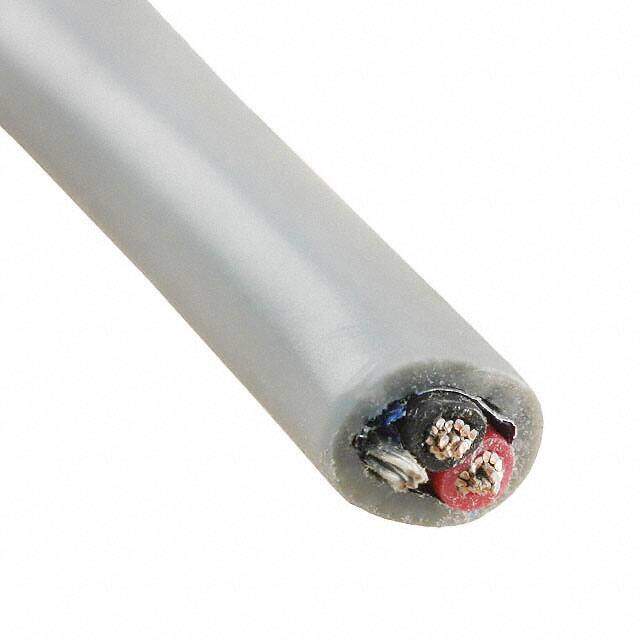

C2524A.30.10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
CABLE 2COND 20AWG GRY SHLD 1000'
PDF
/
Inventory: 4308
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Cable
Insulation Material PVC
Conductor Material Copper, Annealed Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Flexfoil?
Technical
Operating Temperature -20°C~75°C
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 75°C
Min Operating Temperature -20°C
Color Grey
Number of Conductors 2
Wire Gauge 20 AWG
Voltage 300V
Cable Type Multi-Conductor
Wire/Cable Type Multi-Conductor
Wire/Cable Gauge 20 AWG
Jacket Color Gray
Conductor Strand 7/28
Usage Communication, Control
Jacket (Insulation) Diameter 0.183 (4.65mm)
Insulation Diameter 4.6482 mm
Conductor Insulation Polyethylene (PE)
Shield Type Foil
Shield Coverage 100%
Dimensions
Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0200 0.508mm
Insulation Thickness 508μm
Compliance
RoHS Status RoHS Compliant
Ratings ASTM B-33
