C2463A.18.10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

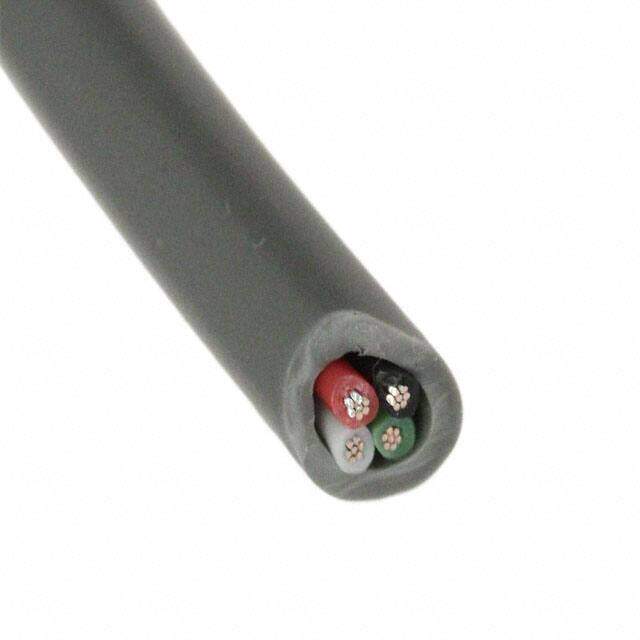

CABLE 4COND 24AWG GRAY 500'
PDF
/
Inventory: 7270
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings ASTM B-33
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Insulation Thickness 812.8μm
Jacket (Insulation) Thickness 0.0320 0.813mm
Length 500.0' 152.4m
Technical
Outside Diameter 4.42 mm
Conductor Insulation Poly-Vinyl Chloride (PVC)
Insulation Diameter 4.4196 mm
Jacket (Insulation) Diameter 0.174 (4.42mm)
Usage Communication, Control
Conductor Strand 7/32
Jacket Color Gray
Wire/Cable Gauge 24 AWG
Wire/Cable Type Multi-Conductor
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 24 AWG
Number of Conductors 4
Voltage - Rated DC 300V
Voltage - Rated 300V
Color Grey
Min Operating Temperature -20°C
Max Operating Temperature 80°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Operating Temperature -20°C~80°C
Physical
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Annealed Tinned
Insulation Material PVC
Mount Cable
