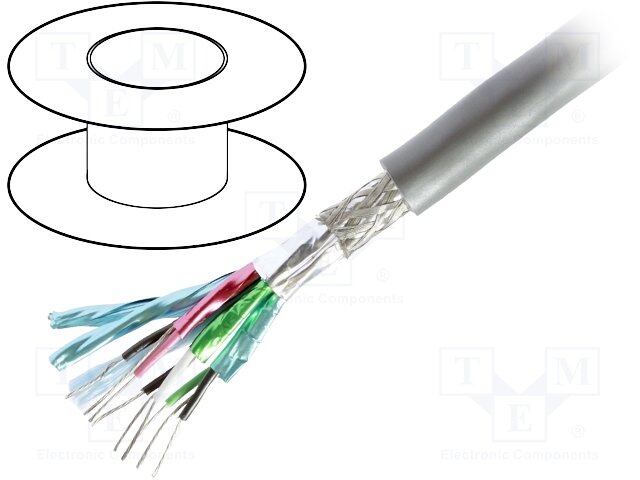

8178 060100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
CBL 18PR 24AWG SHLD
PDF
/
Inventory: 8502
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings UL Style 2493
RoHS Status RoHS Compliant
Dimensions
Jacket (Insulation) Thickness 0.0650 1.651mm
Length 100.0' 30.5m
Technical
Shield Coverage 100%, 65%
Shield Type Foil, Braid
Conductor Insulation Foam Polyethylene (FPE)
Jacket (Insulation) Diameter 0.696 (17.68mm)
Usage Computer
Conductor Strand 7/32
Jacket Color Chrome
Cable Type Multi-Pair
Connector Support Type WIRE AND CABLE
Voltage 300V
Wire Gauge 24 AWG
Number of Conductors 36 (18 Pair Twisted)
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Drain Wire
Published 2012
Packaging Spool
Operating Temperature -40°C~60°C
Physical
Shield Material Aluminum; Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
Supply Chain
Factory Lead Time 6 Weeks
