25152 BK005
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

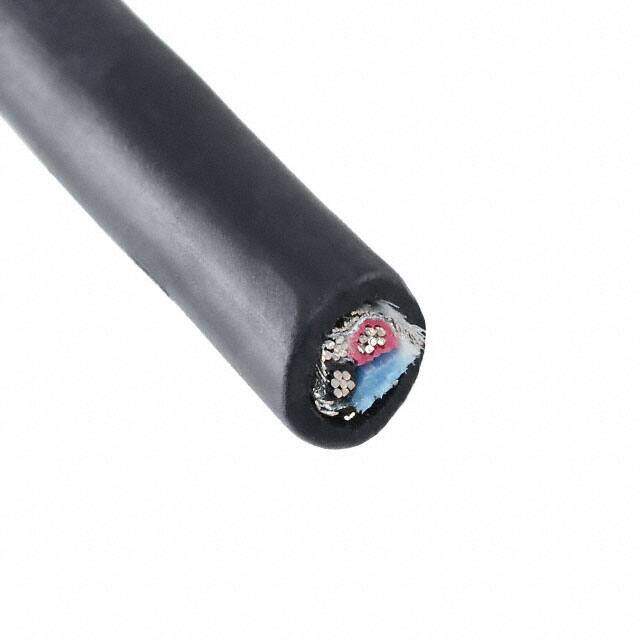

Alpha Wire 2 Core XG2, XTRA-GUARD 2 Screened Black Polyurethane PUR Industrial Cable 0.56 mm CSA, 30m
PDF
/
Buying Options
Total Price: USD $353.34
Unit Price: USD $353.3376
≥1 USD $353.3376
≥10 USD $351.02613
Inventory: 58
Minimum: 1
-
+
Technical Details
Compliance
Ratings ISO 10993, UL Style 20668
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0320 0.813mm
Length 100.0' 30.5m
Technical
Shield Coverage 100%, 70%
Shield Type Foil, Braid
Conductor Insulation Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.236 (5.99mm)
Conductor Strand 7/28
Jacket Color Black
Cable Type Multi-Conductor
Connector Support Type WIRE AND CABLE
Voltage 300V
Wire Gauge 20 AWG
Number of Conductors 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Biological Compatibility, Drain Wire, Rip Cord
Series Xtra-Guard? 2
Published 2010
Packaging Spool
Operating Temperature -30°C~90°C
Physical
Shield Material Suprashield?; Copper, Tinned
Jacket (Insulation) Material Polyurethane (PU)
Conductor Material Copper, Tinned
Supply Chain
Factory Lead Time 5 Weeks
