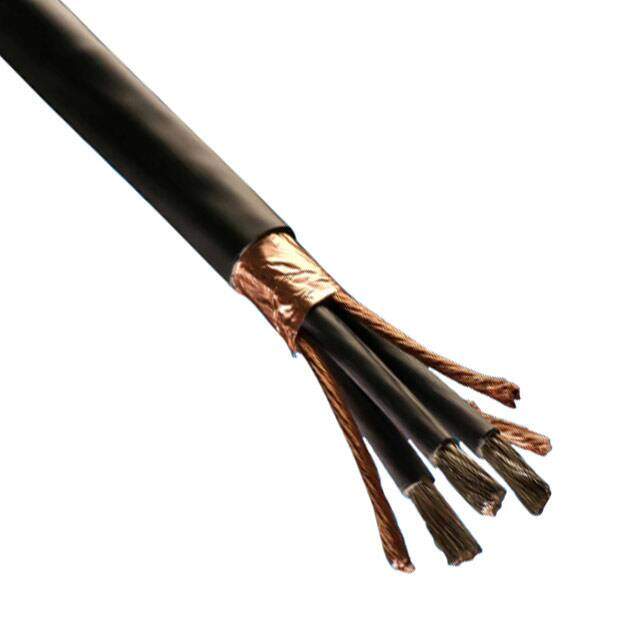

VF16010 BK008
RoHS
/
Package /
Category Cables, Wires / Multiple Conductor Cables
Description
10AWG 4C VFD CABLE TPE
PDF
/
Buying Options
Total Price: USD $266.71
Unit Price: USD $266.706922
≥1 USD $266.706922
≥10 USD $251.6103
≥100 USD $237.368215
≥500 USD $223.932277
≥1000 USD $211.256864
Inventory: 1961
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Thermoplastic Elastomer (TPE)
Shield Material Aluminum; Copper, Tinned
Technical
Operating Temperature -40°C~90°C
Packaging Spool
Series V-Flex
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 4
Wire Gauge 10 AWG
Voltage 1000V
Cable Type Multi-Conductor
Jacket Color Black
Conductor Strand 105/30
Usage Motor Supply, Variable Frequency Drive (VFD)
Jacket (Insulation) Diameter 0.750 (19.05mm)
Conductor Insulation Polyethylene (PE)
Shield Type Foil, Braid
Shield Coverage 100%, 85%
Dimensions
Length 25.00' 7.62m
Jacket (Insulation) Thickness 0.0850 2.159mm
