30-01007
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

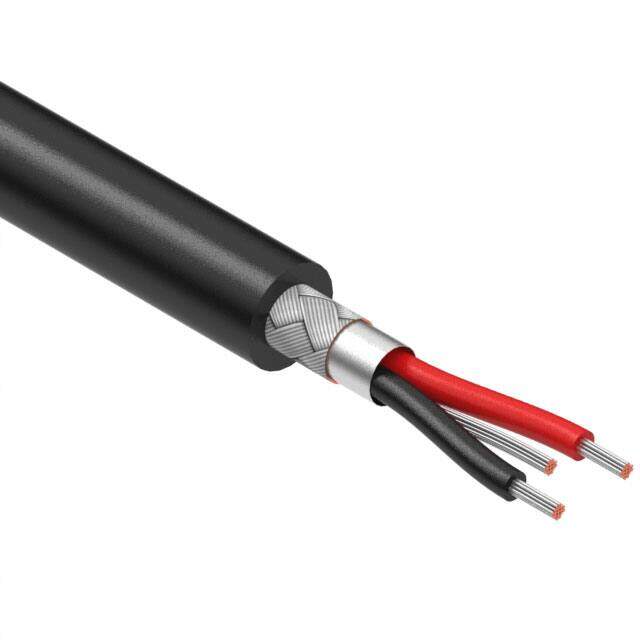

CBL 2CON 24AWG SHLD BLK 153M
PDF
/
Buying Options
Total Price: USD $3.26
Unit Price: USD $3.256
≥1 USD $3.256
≥10 USD $2.6664
≥100 USD $2.07416
Inventory: 122
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Aluminum; Copper, Tinned
Technical
Operating Temperature -25°C~80°C
Packaging Spool
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Conductors 2
Wire Gauge 24 AWG
Voltage 300V
Cable Type Multi-Conductor
Jacket Color Black
Conductor Strand 11/0.0063
Jacket (Insulation) Diameter 0.185 (4.70mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil, Braid
Shield Coverage 80%
Dimensions
Length 502.0' 153.0m
Jacket (Insulation) Thickness 0.0315 0.800mm
Compliance
RoHS Status ROHS3 Compliant
Ratings UL Style 2464
