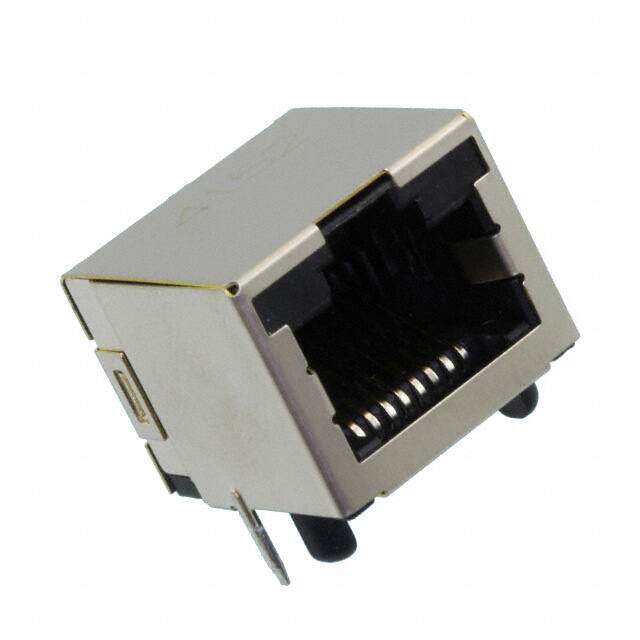

2-406541-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Modular Connectors - Jacks
Description
Conn RJ-45 F 8 POS Solder RA Thru-Hole 8 Terminal 1 Port Tray
PDF
/
Buying Options
Total Price: USD $2.31
Unit Price: USD $2.3056
≥1 USD $2.3056
≥10 USD $2.0592
≥100 USD $2.04864
≥500 USD $2.027634
≥1000 USD $1.860434
≥3000 USD $1.849998
Inventory: 2571
Minimum: 1
-
+
Technical Details
Compliance
Ratings Cat5
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Dimensions
PCB Thickness 1.57mm
Length - Tail 2.54mm
Contact Finish Thickness - Mating 360 nm
Contact Finish Thickness 50.0μin 1.27μm
Height 13.34mm
Technical
Keyed No
Tab Direction Up
LED Color Does Not Contain LED
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Circuit Application Signal
Number of Ports 1
Element Configuration Single
ELV Compliant
Contact Finish Gold
Current Rating 200mA
Number of Positions Loaded 8
Shielding Shielded, EMI Finger
Orientation 90° Angle (Right)
Gender Female
Color Black
Connector Type Jack
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide
Published 2014
Packaging Tray
Operating Temperature -40°C~85°C
Physical
PCB Mounting Orientation Right Angle
Housing Material Thermoplastic
Mounting Type Through Hole
Mount Panel
Contact Material Phosphor Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 25 Weeks
