1-87579-7
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

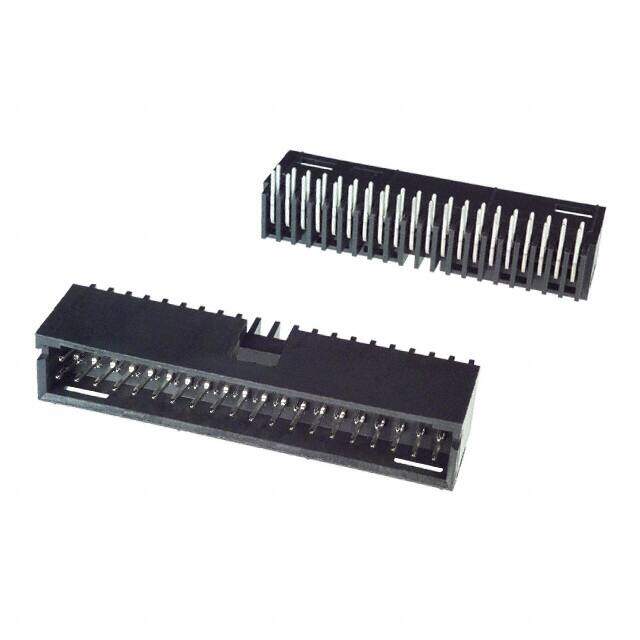

CONN HEADER RTANG 40POS PCB TIN
PDF
/
Inventory: 971
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 1.397mm
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Technical
Shrouded End Dimension 1.68 mm
High Temperature Housing No
Mating Post Length 8.08mm
Contact Current Rating 3A
ELV Non-Compliant
Insulation Resistance 5GOhm
Lead Length 3.429mm
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Length - Mating 0.318 8.08mm
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.135 3.43mm
Row Spacing - Mating 0.100 (2.54mm)
Approval Agency CSA
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.400 10.16mm
Orientation Right Angle
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin-Lead
Fastening Type Detent Lock
Gender Male
Number of Rows 2
Number of Positions 40
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e0
Series AMPMODU Mod II
Published 2011
Packaging Tray
Operating Temperature -65°C~105°C
Physical
PCB Mounting Orientation Right Angle
Insulation Material Thermoplastic
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Lead, Nickel, Tin
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 12 Weeks
Alternative Model
