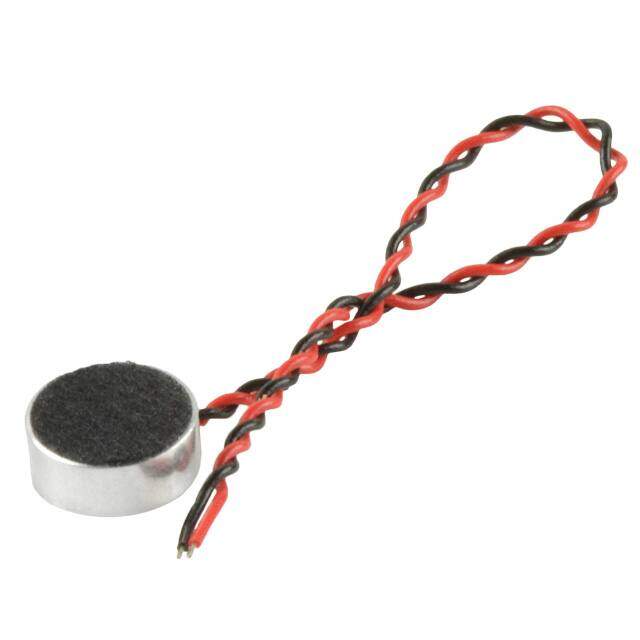

CMC-9745-L100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
MIC COND ANLG UNI -37DB 9.7MM D
PDF
/
Buying Options
Total Price: USD $1.89
Unit Price: USD $1.886637
≥1 USD $1.886637
≥200 USD $0.731285
≥500 USD $0.705027
≥1000 USD $0.691898
Inventory: 9357
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Shape Circular
Technical
Packaging Bulk
Series CMC
Size / Dimension 0.382Dia 9.70mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Wire Leads
Type Electret Condenser
Voltage - Rated 1.5V
Output Type Analog
Impedance 2kOhm
Current - Supply 400μA
Direction Unidirectional
Voltage Range 1.5V~9V
Frequency Range 100Hz~12kHz
Sensitivity -37dB ±3dB @ 94dB SPL
Port Location Top
S/N Ratio 69dB
Dimensions
Height (Max) 0.185 4.70mm
Compliance
RoHS Status RoHS Compliant
