FG-23629-P16
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description

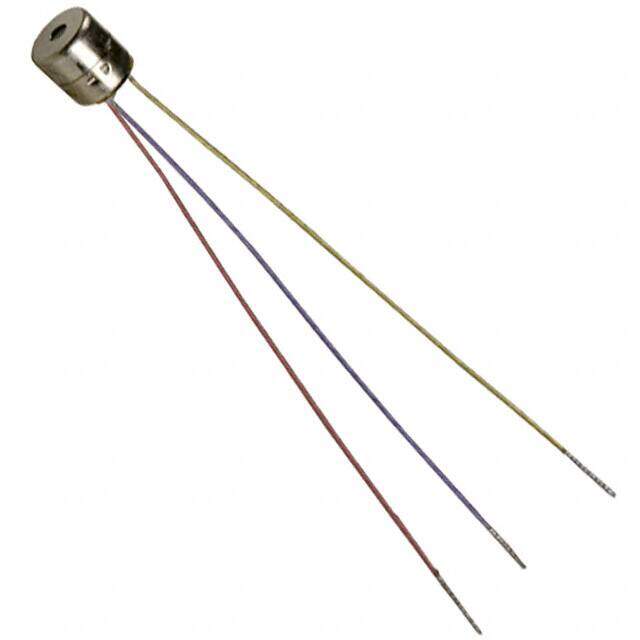

MICROPHONE COND ANALOG OMNI
PDF
/
Inventory: 1
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height (Max) 0.101 2.57mm
Technical
Port Location Top
Sensitivity -53dB ±3dB @ 74dB SPL
Frequency Range 100Hz~10kHz
Voltage Range 1.3V~3V
Direction Omnidirectional
Current - Supply 50μA
Impedance 4.4kOhm
Output Type Analog
Voltage - Rated 1.3V
Type Electret Condenser
Termination Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.101Dia 2.57mm
Series FG
Published 2009
Physical
Shape Circular
Supply Chain
Factory Lead Time 8 Weeks
